Mobile练习。
app1
将 apk 拖入 jadx 进行反编译，查看入口点 MainActivity 代码：
package com.example.yaphetshan.tencentgreat;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager.NameNotFoundException;
import android.os.Bundle;
import android.support.v4.view.accessibility.AccessibilityNodeInfoCompat;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;
public class MainActivity extends AppCompatActivity {
Button btn;
public final String pName = BuildConfig.APPLICATION_ID;
EditText text;
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView((int) R.layout.activity_main);
this.btn = (Button) findViewById(R.id.checBtn);
this.text = (EditText) findViewById(R.id.input);
this.btn.setOnClickListener(new OnClickListener() {
public void onClick(View v) {
try {
String inputString = MainActivity.this.text.getText().toString();
PackageInfo pinfo = MainActivity.this.getPackageManager().getPackageInfo(BuildConfig.APPLICATION_ID, AccessibilityNodeInfoCompat.ACTION_COPY);
String versionCode = pinfo.versionName; // 获取包信息中的versionName
int versionName = pinfo.versionCode; // 获取包信息中的versionCode
int i = 0;
while (i < inputString.length() && i < versionCode.length()) {
if (inputString.charAt(i) != (versionCode.charAt(i) ^ versionName)) { // 将versionCode中的每一字节和versionName异或并和输入比较
Toast.makeText(MainActivity.this, "\u518d\u63a5\u518d\u5389\uff0c\u52a0\u6cb9~", 1).show(); // 再接再厉，加油~
return;
}
i++;
}
if (inputString.length() == versionCode.length()) { // 判断输入的长度和versionCode是否相同
Toast.makeText(MainActivity.this, "\u606d\u559c\u5f00\u542f\u95ef\u5173\u4e4b\u95e8\uff01", 1).show(); // 恭喜开启闯关之门！
return;
}
} catch (NameNotFoundException e) {
}
Toast.makeText(MainActivity.this, "\u5e74\u8f7b\u4eba\u4e0d\u8981\u800d\u5c0f\u806a\u660e\u5662", 1).show(); // 年轻人不要耍小聪明噢
}
});
}
}
代码中可以判断出是将 versionCode 和 versionName 进行异或然后和输入比较，具体信息可以在 AndroidManifest.xml 中找到：
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android" android:versionCode="15" android:versionName="X<cP[?PHNB<P?aj" package="com.example.yaphetshan.tencentgreat" platformBuildVersionCode="25" platformBuildVersionName="7.1.1">
<uses-sdk android:minSdkVersion="19" android:targetSdkVersion="25" />
<uses-permission android:name="android.permission.INTERNET" />
<meta-data android:name="android.support.VERSION" android:value="25.3.0" />
<application android:theme="@style/AppTheme" android:label="@string/app_name" android:icon="@mipmap/ic_launcher" android:debuggable="true" android:allowBackup="true" android:supportsRtl="true" android:roundIcon="@mipmap/ic_launcher_round">
<activity android:name="com.example.yaphetshan.tencentgreat.MainActivity">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
</manifest>
编写脚本来得到 flag：
#!/usr/bin/env python
versionCode = 15
versionName = "X<cP[?PHNB<P?aj"
flag = ''
for c in versionName:
flag += chr(ord(c) ^ versionCode)
print flag
# W3l_T0_GAM3_0ne
app2
先使用 jadx 反编译，查看入口点的代码，在两个输入框中输入字符串后会去调用 SecondActivity：
package com.tencent.testvuln;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.content.Intent;
import android.content.SharedPreferences.Editor;
import android.os.Bundle;
import android.os.Handler;
import android.support.v4.BuildConfig;
import android.util.Log;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;
import com.tencent.testvuln.c.SignatureTool;
@SuppressLint({"ShowToast"})
public class MainActivity extends Activity implements OnClickListener {
private Button a;
private Handler b = null;
private EditText c;
private EditText d;
protected void onCreate(Bundle bundle) {
super.onCreate(bundle);
setContentView(R.layout.activity_main);
this.a = (Button) findViewById(R.id.button1);
this.a.setOnClickListener(this);
this.c = (EditText) findViewById(R.id.editText1);
this.d = (EditText) findViewById(R.id.editText2);
Editor edit = getSharedPreferences("test", 0).edit();
edit.putLong("ili", System.currentTimeMillis());
edit.commit();
Log.d("hashcode", SignatureTool.getSignature(this) + BuildConfig.VERSION_NAME);
}
public boolean onCreateOptionsMenu(Menu menu) {
getMenuInflater().inflate(R.menu.main, menu);
return true;
}
public boolean onOptionsItemSelected(MenuItem menuItem) {
if (menuItem.getItemId() == R.id.action_settings) {
return true;
}
return super.onOptionsItemSelected(menuItem);
}
public void onClick(View view) {
switch (view.getId()) {
case R.id.button1:
if (this.c.getText().length() == 0 || this.d.getText().length() == 0) {
Toast.makeText(this, "\u4e0d\u80fd\u4e3a\u7a7a", 1).show(); // 不能为空
return;
}
String obj = this.c.getText().toString(); // 获取第一个输入框中的字符串
String obj2 = this.d.getText().toString(); // 获取第二个输入框中的字符串
Log.e("test", obj + " test2 = " + obj2);
Intent intent = new Intent(this, SecondActivity.class); // 设置Intent跳转到SecondActivity
intent.putExtra("ili", obj); // 设置变量ili的值为obj的值
intent.putExtra("lil", obj2); // 设置变量lil的值为obj2的值
startActivity(intent); // 调用SecondActivity
return;
default:
return;
}
}
}
接下来看看 SecondActivity，将输入的字符串拼接起来，经过 Encryto.doRawData 的操作后和一串 base64 进行比较：
package com.tencent.testvuln;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.SharedPreferences.Editor;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;
import android.widget.Toast;
import com.tencent.testvuln.c.Encryto;
public class SecondActivity extends a {
private BroadcastReceiver c = new BroadcastReceiver(this) {
final /* synthetic */ SecondActivity a;
{
this.a = r1;
}
public void onReceive(Context context, Intent intent) {
Toast.makeText(context, "myReceiver receive", 0).show();
if (!context.getPackageName().equals(intent.getAction())) {
}
}
};
protected void onCreate(Bundle bundle) {
super.onCreate(bundle);
setContentView(R.layout.activity_main2);
Intent intent = getIntent();
String stringExtra = intent.getStringExtra("ili"); // obj
String stringExtra2 = intent.getStringExtra("lil"); // obj2
if (Encryto.doRawData(this, stringExtra + stringExtra2).equals("VEIzd/V2UPYNdn/bxH3Xig==")) { // 判断obj+obj2经过Encryto.doRawData后是否等于指定字符串
intent.setAction("android.test.action.MoniterInstallService");
intent.setClass(this, MoniterInstallService.class);
intent.putExtra("company", "tencent");
intent.putExtra("name", "hacker");
intent.putExtra("age", 18);
startActivity(intent);
startService(intent);
}
Editor edit = getSharedPreferences("test", 0).edit();
edit.putString("ilil", stringExtra);
edit.putString("lili", stringExtra2);
edit.commit();
}
public boolean onCreateOptionsMenu(Menu menu) {
getMenuInflater().inflate(R.menu.main, menu);
return true;
}
public boolean onOptionsItemSelected(MenuItem menuItem) {
if (menuItem.getItemId() == R.id.action_settings) {
return true;
}
return super.onOptionsItemSelected(menuItem);
}
}
然后我找到了 Encryto.doRawData 函数的位置。可以看到这里的所有函数都是在 Native 层实现的：
package com.tencent.testvuln.c;
public class Encryto {
public static native int checkSignature(Object obj);
public static native String decode(Object obj, String str);
public static native String doRawData(Object obj, String str);
public static native String encode(Object obj, String str);
public native String HelloLoad();
static {
System.loadLibrary("JNIEncrypt");
}
}
用 IDA 打开 libJNIEncrypt.so，然后定位到 JNI_OnLoad，并找到被动态注册的函数：
.data:00006008 off_6008 DCD aChecksignature_0 ; DATA XREF: register_ndk_load+22↑o
.data:00006008 ; .text:off_221C↑o
.data:00006008 ; "checkSignature"
.data:0000600C DCD aLjavaLangObjec ; "(Ljava/lang/Object;)I"
.data:00006010 DCD check+1
.data:00006014 DCD aDecode_0 ; "decode"
.data:00006018 DCD aLjavaLangObjec_0 ; "(Ljava/lang/Object;Ljava/lang/String;)L"...
.data:0000601C DCD decode+1
.data:00006020 DCD aEncode_0 ; "encode"
.data:00006024 DCD aLjavaLangObjec_0 ; "(Ljava/lang/Object;Ljava/lang/String;)L"...
.data:00006028 DCD encode+1
.data:0000602C DCD aDorawdata_0 ; "doRawData"
.data:00006030 DCD aLjavaLangObjec_0 ; "(Ljava/lang/Object;Ljava/lang/String;)L"...
.data:00006034 DCD doRawData+1
.data:00006034 ; .data ends
看一下其中的 doRawData 函数，发现其中调用了一个 j_AES_128_ECB_PKCS5Padding_Encrypt 函数，可以大概推断出经过了 AES-128 的加密，且加密模式用了 ECB，Padding 用了 PKCS5：
int __fastcall doRawData(_JNIEnv *env, int a2, int a3, char *string)
{
_JNIEnv *v4; // r4
char *v5; // r9
const char *utf_string; // r6
int ciphertext; // r8
int result; // r0
jstring (__cdecl *v9)(JNIEnv *, const jchar *, jsize); // r6
char *v10; // r5
size_t v11; // r2
int key; // [sp+0h] [bp-28h]
int v13; // [sp+18h] [bp-10h]
v4 = env;
v5 = string;
if ( j_checkSignature((int)env, a2, a3) == 1
&& (strcpy((char *)&key, "thisisatestkey=="),
utf_string = (const char *)((int (__fastcall *)(_JNIEnv *, char *, _DWORD))v4->functions->GetStringUTFChars)(
v4,
v5,
0),
ciphertext = j_AES_128_ECB_PKCS5Padding_Encrypt(utf_string, (int)&key),
((void (__fastcall *)(_JNIEnv *, char *, const char *))v4->functions->ReleaseStringUTFChars)(v4, v5, utf_string),
result = ((int (__fastcall *)(_JNIEnv *, int))v4->functions->NewStringUTF)(v4, ciphertext),
_stack_chk_guard == v13) )
{
return result;
}
do
{
v9 = v4->functions->NewString;
v10 = UNSIGNATURE[0];
v11 = strlen(UNSIGNATURE[0]);
}
while ( _stack_chk_guard != v13 );
result = ((int (__fastcall *)(_JNIEnv *, char *, size_t))v9)(v4, v10, v11);
return result;
}
然后进去看到加密完成之后进行了 base64 加密在返回密文：
int __fastcall AES_128_ECB_PKCS5Padding_Encrypt(const char *a1, int a2)
{
int v2; // r9
const char *v3; // r10
signed int v4; // r0
signed int v5; // r5
_BYTE *v6; // r11
signed int v7; // r0
const char *v8; // r1
signed int v9; // r8
char *v10; // r10
int v11; // r5
_BYTE *v12; // r0
signed int v13; // r2
char v14; // r6
int v15; // r6
int v16; // r4
int v17; // r5
v2 = a2;
v3 = a1;
v4 = strlen(a1);
v5 = v4;
if ( v4 <= 15 )
{
v6 = malloc(0x10u);
v7 = 0;
do
{
v8 = &byte_3BB0[16 - v5];
if ( v7 < v5 )
v8 = &v3[v7];
v6[v7++] = *v8;
}
while ( v7 != 16 );
v9 = 16;
v10 = (char *)malloc(0x10u);
v11 = 1;
LABEL_18:
v15 = 0;
v16 = 0;
do
{
j_AES128_ECB_encrypt(&v6[v15], v2, &v10[v15]);
++v16;
v15 += 16;
}
while ( v16 < v11 );
goto LABEL_22;
}
v9 = (v4 + 16) & 0xFFFFFFF0;
v12 = malloc(v9);
v6 = v12;
if ( v9 <= 0 )
{
v10 = (char *)malloc((v5 + 16) & 0xFFFFFFF0);
goto LABEL_22;
}
v13 = 0;
do
{
if ( v13 >= v5 )
{
if ( !(v5 & 0xF) )
{
v12[v13] = 16;
goto LABEL_15;
}
v14 = byte_3BB0[v9 - v5];
}
else
{
v14 = v3[v13];
}
v12[v13] = v14;
LABEL_15:
++v13;
}
while ( v9 != v13 );
v10 = (char *)malloc((v5 + 16) & 0xFFFFFFF0);
if ( v9 >= 16 )
{
v11 = v9 / 16;
goto LABEL_18;
}
LABEL_22:
v17 = j_b64_encode((int)v10, v9);
free(v6);
free(v10);
return v17;
}
用 Python 脚本解密得到明文：
#!/usr/bin/env python
from Crypto.Cipher import AES
key = 'thisisatestkey=='
aes = AES.new(key, AES.MODE_ECB)
ciphertext = 'VEIzd/V2UPYNdn/bxH3Xig=='.decode('base64')
print aes.decrypt(ciphertext)
# aimagetencent
尝试提交这串字符串提示错误，再尝试用这字符串登录也没得到什么结果，那么继续往下分析。发现其中调用了多次 Intent，还设置了 IntentFilter，看的眼花缭乱都没找到 flag 在哪里。再去尝试一下交叉引用，看看哪些类调用了 Encryto 类，发现了 FileDataActivity 类中调用了 decode 方法，在 IDA 中可以发现 decode 和 doRawData 的功能一模一样：
package com.tencent.testvuln;
import android.os.Bundle;
import android.widget.TextView;
import com.tencent.testvuln.c.Encryto;
public class FileDataActivity extends a {
private TextView c;
protected void onCreate(Bundle bundle) {
super.onCreate(bundle);
setContentView(R.layout.activity_main3);
this.c = (TextView) findViewById(R.id.textView1);
this.c.setText(Encryto.decode(this, "9YuQ2dk8CSaCe7DTAmaqAA=="));
}
}
最后用这里的密文解密得到了 flag：
...
ciphertext2 = '9YuQ2dk8CSaCe7DTAmaqAA=='.decode('base64')
print aes.decrypt(ciphertext2)
# Cas3_0f_A_CAK3
app3
拿到文件用 file 没有识别出来，xxd 看一下：
$ xxd app3.ab | head
00000000: 414e 4452 4f49 4420 4241 434b 5550 0a32 ANDROID BACKUP.2
00000010: 0a31 0a6e 6f6e 650a 78da e47a e55f 936f .1.none.x..z._.o
00000020: fcaf 8a74 8e1e 0d1b 5d63 0361 303a 4797 ...t....]c.a0:G.
00000030: 8422 3d06 8ab4 c248 a507 a373 3046 2328 ."=....H...s0F#(
00000040: 2a65 a088 d20c 4623 8222 4883 a252 5202 *e....F#."H..RR.
00000050: 9e7d 7fe7 75fe 80f3 e43c 39d7 93fb 75bf .}..u....<9...u.
00000060: b6dd d775 7de2 1df7 2e8f a0a0 5045 afc0 ...u}.......PE..
00000070: bb0a a808 8fbb 41fe 2805 8c47 902f 2a2c ......A.(..G./*,
00000080: d4d7 2340 210c 15e0 850a 080b 47f9 53be ..#@!.......G.S.
00000090: 8052 f450 f4f4 0845 2978 04dd b9f4 7f37 .R.P...E)x.....7
搜了一下发现是安卓备份文件，可以用 Android Backup Extractor 来解压：
$ java -jar abe.jar unpack app3.ab app3.tar ""
0% 1% 2% 3% 4% 5% 6% 7% 8% 9% 10% 11% 12% 13% 14% 15% 16% 17% 18% 19% 20% 21% 22% 23% 24% 25% 26% 27% 28% 29% 30% 31% 32% 33% 34% 35% 36% 37% 38% 39% 40% 41% 42% 43% 44% 45% 46% 47% 48% 49% 50% 51% 52% 53% 54% 55% 56% 57% 58% 59% 60% 61% 62% 63% 64% 65% 66% 67% 68% 69% 70% 71% 72% 73% 74% 75% 76% 77% 78% 79% 80% 81% 82% 83% 84% 85% 86% 87% 88% 89% 90% 91% 92% 93% 94% 95% 96% 97% 98% 99% 100%
9097216 bytes written to /Users/assassinq/Downloads/app3.tar.
在解压得到的 tar 包：
$ x app3.tar
x apps/com.example.yaphetshan.tencentwelcome/a/base.apk
x apps/com.example.yaphetshan.tencentwelcome/db/Demo.db
x apps/com.example.yaphetshan.tencentwelcome/Encryto.db
x apps/com.example.yaphetshan.tencentwelcome/_manifest
生成的文件中，两个 db 都是被加密了的 sqlite 数据库。先来用 jadx 看看 base.apk，可以看到 a() 函数通过一些操作计算出一个密码，来获得一个数据库的接口。详细分析我记录在了注释中，其他的分析再看之后的函数：
package com.example.yaphetshan.tencentwelcome;
import android.content.ContentValues;
import android.content.Intent;
import android.content.SharedPreferences.Editor;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import com.example.yaphetshan.tencentwelcome.a.a;
import net.sqlcipher.database.SQLiteDatabase;
public class MainActivity extends AppCompatActivity implements OnClickListener {
private SQLiteDatabase a;
private a b;
private Button c;
protected void onCreate(Bundle bundle) {
super.onCreate(bundle);
setContentView((int) R.layout.activity_main);
this.c = (Button) findViewById(R.id.add_data);
this.c.setOnClickListener(this);
Editor edit = getSharedPreferences("test", 0).edit();
edit.putString("Is_Encroty", "1"); // Is_Encroty="1"
edit.putString("Encryto", "SqlCipher"); // Encryto="SqlCipher"
edit.putString("ver_sion", "3_4_0"); // ver_sion="3_4_0"
edit.apply();
a();
}
private void a() {
SQLiteDatabase.loadLibs(this);
this.b = new a(this, "Demo.db", null, 1); // 打开Demo.db
ContentValues contentValues = new ContentValues();
contentValues.put("name", "Stranger"); // name="Stanger"
contentValues.put("password", Integer.valueOf(123456)); // password=123456
a aVar = new a();
String a = aVar.a(contentValues.getAsString("name"), contentValues.getAsString("password")); // a = name[:4] + password[:4]
this.a = this.b.getWritableDatabase(aVar.a(a + aVar.b(a, contentValues.getAsString("password"))).substring(0, 7)); // 将SHA1(a+MD5(a)+"yaphetshan")[:7]作为密码，获取指定数据库接口
this.a.insert("TencentMicrMsg", null, contentValues); // 将数据contentValues插入表TencentMicrMsg
}
public void onClick(View view) {
if (view == this.c) {
Intent intent = new Intent();
intent.putExtra("name", "name");
intent.putExtra("password", "pass");
intent.setClass(this, AnotherActivity.class);
startActivity(intent);
}
}
}
在同一包下的 a 类中，看到了数据库 TencentMicrMsg 的结构，其中有一个 F_l_a_g 字段，可以判断是 flag：
package com.example.yaphetshan.tencentwelcome;
import android.content.Context;
import net.sqlcipher.database.SQLiteDatabase;
import net.sqlcipher.database.SQLiteDatabase.CursorFactory;
import net.sqlcipher.database.SQLiteOpenHelper;
/* compiled from: DatabaseManager */
public class a extends SQLiteOpenHelper {
private int a = 0;
public a(Context context, String str, CursorFactory cursorFactory, int i) { // 打开指定数据库
super(context, str, cursorFactory, i);
}
public void onCreate(SQLiteDatabase sQLiteDatabase) {
sQLiteDatabase.execSQL("create table TencentMicrMsg(name text,password integer,F_l_a_g text)"); // 表TencentMicrMsg中三个字段分别是text、integer和text
}
public void onUpgrade(SQLiteDatabase sQLiteDatabase, int i, int i2) {
}
}
在包 a 下的 a 类，其中两个函数可以根据 b 类的函数分析得到功能：
package com.example.yaphetshan.tencentwelcome.a;
/* compiled from: Cipher */
public class a {
private String a = "yaphetshan";
public String a(String str, String str2) {
String substring = str.substring(0, 4);
return substring + str2.substring(0, 4);
}
public String b(String str, String str2) { // 返回MD5十六进制字符串
b bVar = new b();
return b.a(str);
}
public String a(String str) { // 返回SHA1(str+"yaphetshan")的十六进制字符串
b bVar = new b();
return b.b(str + this.a);
}
}
包 a 下的 b 类，根据 MessageDigest 创建的实例可以分别判断出是获取 MD5 和 SHA-1 的十六进制摘要：
package com.example.yaphetshan.tencentwelcome.a;
import java.security.MessageDigest;
/* compiled from: SHA1Manager */
public class b {
public static final String a(String str) { // 获取MD5十六进制字符串
int i = 0;
char[] cArr = new char[]{'0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'a', 'b', 'c', 'd', 'e', 'f'};
try {
byte[] bytes = str.getBytes();
MessageDigest instance = MessageDigest.getInstance("MD5");
instance.update(bytes);
byte[] digest = instance.digest(); // 获取MD5哈希摘要
int length = digest.length;
char[] cArr2 = new char[(length * 2)];
int i2 = 0;
while (i < length) {
byte b = digest[i];
int i3 = i2 + 1;
cArr2[i2] = cArr[(b >>> 4) & 15];
i2 = i3 + 1;
cArr2[i3] = cArr[b & 15];
i++;
}
return new String(cArr2);
} catch (Exception e) {
return null;
}
}
public static final String b(String str) { // 获取SHA1十六进制字符串
int i = 0;
char[] cArr = new char[]{'0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'a', 'b', 'c', 'd', 'e', 'f'};
try {
byte[] bytes = str.getBytes();
MessageDigest instance = MessageDigest.getInstance("SHA-1");
instance.update(bytes);
byte[] digest = instance.digest(); // 获取SHA1哈希摘要
int length = digest.length;
char[] cArr2 = new char[(length * 2)];
int i2 = 0;
while (i < length) {
byte b = digest[i];
int i3 = i2 + 1;
cArr2[i2] = cArr[(b >>> 4) & 15];
i2 = i3 + 1;
cArr2[i3] = cArr[b & 15];
i++;
}
return new String(cArr2);
} catch (Exception e) {
return null;
}
}
}
那么根据上面的分析可以正向地得到密码：
#!/usr/bin/env python
import hashlib
md5hash = lambda m: hashlib.md5(m).hexdigest()
sha1hash = lambda m: hashlib.sha1(m).hexdigest()
name = "Stranger"
password = "123456"
a = name[:4] + password[:4]
database = sha1hash(a + md5hash(a) + "yaphetshan")[:7]
print database
# ae56f99

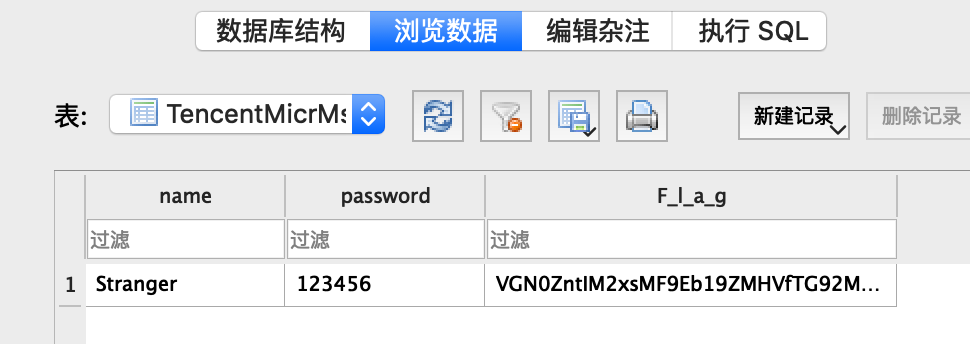

打开 Decypt.db 库，查看表中数据：
将字段中的字符串解 base64：
$ echo "VGN0ZntIM2xsMF9Eb19ZMHVfTG92M19UZW5jM250IX0=" | base64 -D
Tctf{H3ll0_Do_Y0u_Lov3_Tenc3nt!}
easy-apk
把 apk 拖进 jadx，反编译查看入口事件代码，判断出对输入进行了 Base64 加密：
package com.testjava.jack.pingan1;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;
public class MainActivity extends AppCompatActivity {
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView((int) R.layout.activity_main);
((Button) findViewById(R.id.button)).setOnClickListener(new OnClickListener() {
public void onClick(View view) {
if (new Base64New().Base64Encode(((EditText) MainActivity.this.findViewById(R.id.editText)).getText().toString().getBytes()).equals("5rFf7E2K6rqN7Hpiyush7E6S5fJg6rsi5NBf6NGT5rs=")) {
Toast.makeText(MainActivity.this, "\u9a8c\u8bc1\u901a\u8fc7!", 1).show(); // 验证通过!
} else {
Toast.makeText(MainActivity.this, "\u9a8c\u8bc1\u5931\u8d25!", 1).show(); // 验证失败!
}
}
});
}
}
再看看 Base64New 类中代码，发现是一个换表的 base64：
package com.testjava.jack.pingan1;
import android.support.v4.view.accessibility.AccessibilityNodeInfoCompat;
public class Base64New {
private static final char[] Base64ByteToStr = new char[]{'v', 'w', 'x', 'r', 's', 't', 'u', 'o', 'p', 'q', '3', '4', '5', '6', '7', 'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'y', 'z', '0', '1', '2', 'P', 'Q', 'R', 'S', 'T', 'K', 'L', 'M', 'N', 'O', 'Z', 'a', 'b', 'c', 'd', 'U', 'V', 'W', 'X', 'Y', 'e', 'f', 'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n', '8', '9', '+', '/'};
private static final int RANGE = 255;
private static byte[] StrToBase64Byte = new byte[AccessibilityNodeInfoCompat.ACTION_CLEAR_ACCESSIBILITY_FOCUS];
public String Base64Encode(byte[] bytes) {
StringBuilder res = new StringBuilder();
for (int i = 0; i <= bytes.length - 1; i += 3) {
int k;
byte[] enBytes = new byte[4];
byte tmp = (byte) 0;
for (k = 0; k <= 2; k++) {
if (i + k <= bytes.length - 1) {
enBytes[k] = (byte) (((bytes[i + k] & RANGE) >>> ((k * 2) + 2)) | tmp);
tmp = (byte) ((((bytes[i + k] & RANGE) << (((2 - k) * 2) + 2)) & RANGE) >>> 2);
} else {
enBytes[k] = tmp;
tmp = (byte) 64;
}
}
enBytes[3] = tmp;
for (k = 0; k <= 3; k++) {
if (enBytes[k] <= (byte) 63) {
res.append(Base64ByteToStr[enBytes[k]]);
} else {
res.append('=');
}
}
}
return res.toString();
}
}
直接改表解码：
#!/usr/bin/env python
#-*- encoding=utf-8 -*-
from utils import *
base64_charset = 'vwxrstuopq34567ABCDEFGHIJyz012PQRSTKLMNOZabcdUVWXYefghijklmn89+/='
ciphertext = '5rFf7E2K6rqN7Hpiyush7E6S5fJg6rsi5NBf6NGT5rs='
plaintext = decipher(ciphertext)
print plaintext
# 05397c42f9b6da593a3644162d36eb01
easyjava
jadx 反编译，MainActivity 中看到主要是 b() 函数判断了 flag 的格式，下面主要是把 a 和 b 两个类的构造函数理清：
package com.a.easyjava;
import android.os.Bundle;
import android.support.v7.app.c;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.EditText;
import android.widget.Toast;
import java.util.Timer;
import java.util.TimerTask;
public class MainActivity extends c {
private static char a(String str, b bVar, a aVar) {
return aVar.a(bVar.a(str));
}
private static Boolean b(String str) {
int i = 0;
if (!str.startsWith("flag{")) {
return Boolean.valueOf(false);
}
if (!str.endsWith("}")) {
return Boolean.valueOf(false);
}
String substring = str.substring(5, str.length() - 1);
b bVar = new b(Integer.valueOf(2));
a aVar = new a(Integer.valueOf(3));
StringBuilder stringBuilder = new StringBuilder();
int i2 = 0;
while (i < substring.length()) {
stringBuilder.append(a(substring.charAt(i) + "", bVar, aVar));
Integer valueOf = Integer.valueOf(bVar.b().intValue() / 25); // 将bVar中d的值除以25并赋值给valueOf
if (valueOf.intValue() > i2 && valueOf.intValue() >= 1) {
i2++;
}
i++;
}
return Boolean.valueOf(stringBuilder.toString().equals("wigwrkaugala"));
}
protected void onCreate(Bundle bundle) {
super.onCreate(bundle);
setContentView((int) R.layout.activity_main);
findViewById(R.id.button).setOnClickListener(new OnClickListener(this) {
final /* synthetic */ MainActivity b;
public void onClick(View view) {
if (MainActivity.b(((EditText) ((MainActivity) this).findViewById(R.id.edit)).getText().toString()).booleanValue()) {
Toast.makeText(this, "You are right!", 1).show();
return;
}
Toast.makeText(this, "You are wrong! Bye~", 1).show();
new Timer().schedule(new TimerTask(this) {
final /* synthetic */ AnonymousClass1 a;
{
this.a = r1;
}
public void run() {
System.exit(1);
}
}, 2000);
}
});
}
}
a 类的构造函数，是对数组 c 的重新排列。然后在 a() 函数中对输入的数字和下标进行转换：
package com.a.easyjava;
import java.util.ArrayList;
public class a {
public static ArrayList<Integer> a = new ArrayList();
static String b = "abcdefghijklmnopqrstuvwxyz";
static Integer d = Integer.valueOf(0);
Integer[] c = new Integer[]{Integer.valueOf(7), Integer.valueOf(14), Integer.valueOf(16), Integer.valueOf(21), Integer.valueOf(4), Integer.valueOf(24), Integer.valueOf(25), Integer.valueOf(20), Integer.valueOf(5), Integer.valueOf(15), Integer.valueOf(9), Integer.valueOf(17), Integer.valueOf(6), Integer.valueOf(13), Integer.valueOf(3), Integer.valueOf(18), Integer.valueOf(12), Integer.valueOf(10), Integer.valueOf(19), Integer.valueOf(0), Integer.valueOf(22), Integer.valueOf(2), Integer.valueOf(11), Integer.valueOf(23), Integer.valueOf(1), Integer.valueOf(8)};
public a(Integer num) {
int intValue;
for (intValue = num.intValue(); intValue < this.c.length; intValue++) {
a.add(this.c[intValue]);
}
for (intValue = 0; intValue < num.intValue(); intValue++) {
a.add(this.c[intValue]);
}
}
public static void a() {
Integer num = d;
d = Integer.valueOf(d.intValue() + 1); // 将d加一
if (d.intValue() == 25) { // 判断d是否等于25
int intValue = ((Integer) a.get(0)).intValue();
a.remove(0);
a.add(Integer.valueOf(intValue)); // 将a的第一个元素添加到最后一位
d = Integer.valueOf(0); // 将d设置成0
}
}
public char a(Integer num) {
int i = 0;
Integer valueOf = Integer.valueOf(0);
if (num.intValue() == -10) { // 判断num是否为-10
a();
return " ".charAt(0);
}
while (i < a.size() - 1) {
if (a.get(i) == num) {
valueOf = Integer.valueOf(i); // 获取a中等于num的元素，并将valueOf设置成其下标i
}
i++;
}
a();
return b.charAt(valueOf.intValue()); // 返回下标对应的b中的字符
}
}
b 类中同理，也是对下标的一个转换：
package com.a.easyjava;
import java.util.ArrayList;
public class b {
public static ArrayList<Integer> a = new ArrayList();
static String b = "abcdefghijklmnopqrstuvwxyz";
static Integer d = Integer.valueOf(0);
Integer[] c = new Integer[]{Integer.valueOf(8), Integer.valueOf(25), Integer.valueOf(17), Integer.valueOf(23), Integer.valueOf(7), Integer.valueOf(22), Integer.valueOf(1), Integer.valueOf(16), Integer.valueOf(6), Integer.valueOf(9), Integer.valueOf(21), Integer.valueOf(0), Integer.valueOf(15), Integer.valueOf(5), Integer.valueOf(10), Integer.valueOf(18), Integer.valueOf(2), Integer.valueOf(24), Integer.valueOf(4), Integer.valueOf(11), Integer.valueOf(3), Integer.valueOf(14), Integer.valueOf(19), Integer.valueOf(12), Integer.valueOf(20), Integer.valueOf(13)};
public b(Integer num) {
int intValue;
for (intValue = num.intValue(); intValue < this.c.length; intValue++) {
a.add(this.c[intValue]);
}
for (intValue = 0; intValue < num.intValue(); intValue++) {
a.add(this.c[intValue]);
}
}
public static void a() {
int intValue = ((Integer) a.get(0)).intValue();
a.remove(0);
a.add(Integer.valueOf(intValue)); // 将a的第一个元素添加到最后一位
b += "" + b.charAt(0);
b = b.substring(1, 27); // 将b的第一个元素添加到最后一位
Integer num = d;
d = Integer.valueOf(d.intValue() + 1); // 将d加一
}
public Integer a(String str) {
int i = 0;
Integer valueOf = Integer.valueOf(0);
if (b.contains(str.toLowerCase())) { // 判断字符串是否在“abcdefghijklmnopqrstuvwxyz”中
Integer valueOf2 = Integer.valueOf(b.indexOf(str)); // str在b中的起始下标
while (i < a.size() - 1) {
if (a.get(i) == valueOf2) { // 获取a中与valueOf2相等的值，并设置valueOf为其下标i
valueOf = Integer.valueOf(i);
}
i++;
}
} else {
valueOf = str.contains(" ") ? Integer.valueOf(-10) : Integer.valueOf(-1); // 判断字符串中是否有空格，如果有valueOf设置成-10，反之设置成-1
}
a();
return valueOf;
}
public Integer b() {
return d;
}
}
其中有很多条件判断不可能发生，实际的算法逻辑没有反编译出的代码这么复杂。逆向实现脚本：
#!/usr/bin/env python
bArray = [17, 23, 7, 22, 1, 16, 6, 9, 21, 0, 15, 5, 10, 18, 2, 24, 4, 11, 3, 14, 19, 12, 20, 13, 8, 25]
aArray = [21, 4, 24, 25, 20, 5, 15, 9, 17, 6, 13, 3, 18, 12, 10, 19, 0, 22, 2, 11, 23, 1, 8, 7, 14, 16]
ciphertext = 'wigwrkaugala'
table = 'abcdefghijklmnopqrstuvwxyz'
valueOfArray = []
for i in range(len(ciphertext)):
valueOfArray.append(table.index(ciphertext[i]))
print valueOfArray
numArray = []
for i in range(len(valueOfArray)):
numArray.append(aArray[valueOfArray[i]])
print numArray
prefix = 'flag{'
suffix = '}'
substring = ''
for i in range(len(numArray)):
ch = table[bArray[numArray[i]]]
substring += ch
bArray.append(bArray[0])
del bArray[0]
table = (table + table[0])[1:27]
flag = prefix + substring + suffix
print flag
easyjni
反编译，其中调用了 a 函数，其中调用了 a 类中的 a 函数和在 libnative.so 实现的 ncheck 函数：
package com.a.easyjni;
import android.os.Bundle;
import android.support.v7.app.c;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.EditText;
import android.widget.Toast;
public class MainActivity extends c {
static {
System.loadLibrary("native");
}
private boolean a(String str) {
try {
return ncheck(new a().a(str.getBytes()));
} catch (Exception e) {
return false;
}
}
private native boolean ncheck(String str);
protected void onCreate(Bundle bundle) {
super.onCreate(bundle);
setContentView((int) R.layout.activity_main);
findViewById(R.id.button).setOnClickListener(new OnClickListener(this) {
final /* synthetic */ MainActivity b;
public void onClick(View view) {
if (this.b.a(((EditText) ((MainActivity) this).findViewById(R.id.edit)).getText().toString())) {
Toast.makeText(this, "You are right!", 1).show();
} else {
Toast.makeText(this, "You are wrong! Bye~", 1).show();
}
}
});
}
}
a 类里的 a 函数很容易发现是个换表 base64：
package com.a.easyjni;
public class a {
private static final char[] a = new char[]{'i', '5', 'j', 'L', 'W', '7', 'S', '0', 'G', 'X', '6', 'u', 'f', '1', 'c', 'v', '3', 'n', 'y', '4', 'q', '8', 'e', 's', '2', 'Q', '+', 'b', 'd', 'k', 'Y', 'g', 'K', 'O', 'I', 'T', '/', 't', 'A', 'x', 'U', 'r', 'F', 'l', 'V', 'P', 'z', 'h', 'm', 'o', 'w', '9', 'B', 'H', 'C', 'M', 'D', 'p', 'E', 'a', 'J', 'R', 'Z', 'N'};
public String a(byte[] bArr) {
StringBuilder stringBuilder = new StringBuilder();
for (int i = 0; i <= bArr.length - 1; i += 3) {
byte[] bArr2 = new byte[4];
byte b = (byte) 0;
for (int i2 = 0; i2 <= 2; i2++) {
if (i + i2 <= bArr.length - 1) {
bArr2[i2] = (byte) (b | ((bArr[i + i2] & 255) >>> ((i2 * 2) + 2)));
b = (byte) ((((bArr[i + i2] & 255) << (((2 - i2) * 2) + 2)) & 255) >>> 2);
} else {
bArr2[i2] = b;
b = (byte) 64;
}
}
bArr2[3] = b;
for (int i3 = 0; i3 <= 3; i3++) {
if (bArr2[i3] <= (byte) 63) {
stringBuilder.append(a[bArr2[i3]]);
} else {
stringBuilder.append('=');
}
}
}
return stringBuilder.toString();
}
}
查看 native 层 ncheck 函数，是静态注册的。理一下发现是个简单的置换：
signed int __fastcall Java_com_a_easyjni_MainActivity_ncheck(_JNIEnv *a1, int a2, jstring a3)
{
int v3; // r8
_JNIEnv *env; // r5
jstring str; // r8
const char *utf_string; // r6
int i; // r0
char *v8; // r2
char v9; // r1
int j; // r0
bool v11; // nf
unsigned __int8 v12; // vf
int v13; // r1
signed int result; // r0
char s1[32]; // [sp+3h] [bp-35h]
char tmp; // [sp+23h] [bp-15h]
int v17; // [sp+28h] [bp-10h]
v17 = v3;
env = a1;
str = a3;
utf_string = a1->functions->GetStringUTFChars(&a1->functions, a3, 0);
if ( strlen(utf_string) == 32 ) // len(str) == 32
{
i = 0;
do
{
v8 = &s1[i];
s1[i] = utf_string[i + 16]; // s1[i] = str[i + 16]
v9 = utf_string[i++];
v8[16] = v9; // s1[i + 16] = str[i]
}
while ( i != 16 );
env->functions->ReleaseStringUTFChars(&env->functions, str, utf_string);
j = 0;
do
{
v12 = __OFSUB__(j, 30);
v11 = j - 30 < 0;
tmp = s1[j];
s1[j] = s1[j + 1];
s1[j + 1] = tmp; // s1[j], s1[j + 1] = s1[j + 1], s1[j]
j += 2;
}
while ( v11 ^ v12 ); // while j <= 30
v13 = memcmp(s1, "MbT3sQgX039i3g==AQOoMQFPskB1Bsc7", 0x20u);
result = 0;
if ( !v13 )
result = 1;
}
else
{
env->functions->ReleaseStringUTFChars(&env->functions, str, utf_string);
result = 0;
}
return result;
}
逆向把位置颠倒的字符串倒回去，再用改表的 base64 解码：
#!/usr/bin/env python
from base64 import *
base64_charset = 'i5jLW7S0GX6uf1cv3ny4q8es2Q+bdkYgKOIT/tAxUrFlVPzhmow9BHCMDpEaJRZN='
ciphertext = 'MbT3sQgX039i3g==AQOoMQFPskB1Bsc7'
ciphertext = [ord(c) for c in ciphertext]
for i in range(len(ciphertext) / 2):
ciphertext[2 * i], ciphertext[2 * i + 1] = ciphertext[2 * i + 1], ciphertext[2 * i]
print ciphertext
for i in range(len(ciphertext) / 2):
ciphertext[i], ciphertext[i + 16] = ciphertext[i + 16], ciphertext[i]
print ciphertext
ciphertext = ''.join([chr(c) for c in ciphertext])
print ciphertext
# QAoOQMPFks1BsB7cbM3TQsXg30i9g3==
plaintext = decipher(ciphertext)
print plaintext
# flag{just_ANot#er_@p3}
easy-so
用 jadx 反编译后，看到调用了 cyberpeace 类中的 CheckString 函数：
package com.testjava.jack.pingan2;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;
public class MainActivity extends AppCompatActivity {
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView((int) R.layout.activity_main);
((Button) findViewById(R.id.button)).setOnClickListener(new OnClickListener() {
public void onClick(View v) {
if (cyberpeace.CheckString(((EditText) MainActivity.this.findViewById(R.id.editText)).getText().toString()) == 1) {
Toast.makeText(MainActivity.this, "\u9a8c\u8bc1\u901a\u8fc7!", 1).show(); // 验证通过!
} else {
Toast.makeText(MainActivity.this, "\u9a8c\u8bc1\u5931\u8d25!", 1).show(); // 验证失败!
}
}
});
}
}
看到函数在 Native 层实现：
package com.testjava.jack.pingan2;
public class cyberpeace {
public static native int CheckString(String str);
static {
System.loadLibrary("cyberpeace");
}
}
发现是静态实现的函数，其中将输入调用了 TestDec，并将结果和指定字符串比较：
signed int __fastcall Java_com_testjava_jack_pingan2_cyberpeace_CheckString(_JNIEnv *a1, int a2, jstring *str)
{
signed int v3; // r8
const char *str_1; // r9
int v5; // r6
const char *v6; // r5
signed int v7; // r1
v3 = 0;
str_1 = a1->functions->GetStringUTFChars(&a1->functions, str, 0);
v5 = strlen(str_1);
v6 = (const char *)malloc(v5 + 1);
v7 = 0;
if ( v5 != -1 )
v7 = 1;
_aeabi_memclr(&v6[v5], v7);
_aeabi_memcpy((int)v6, (int)str_1, v5);
j_TestDec((int)v6);
if ( !strcmp(v6, "f72c5a36569418a20907b55be5bf95ad") )
v3 = 1;
return v3;
}
看一下 TestDec 发现和之前一样，也是一组简单置换：
size_t __fastcall TestDec(const char *a1)
{
char *str; // r4
size_t i; // r5
char *v3; // r1
char v4; // r0
size_t result; // r0
int j; // r5
char *v7; // r0
char v8; // r1
unsigned int v9; // r1
str = (char *)a1;
if ( strlen(a1) >= 2 )
{
i = 0;
do
{
v3 = &str[i];
v4 = str[i];
str[i] = str[i + 16];
++i;
v3[16] = v4; // str[i], str[i + 16] = str[i + 16], str[i]
}
while ( i < strlen(str) >> 1 );
}
result = (unsigned __int8)*str;
if ( !*str )
return result;
*str = str[1];
str[1] = result; // str[0], str[1] = str[1], str[0]
result = strlen(str);
if ( result < 3 )
return result;
j = 0;
do
{
v7 = &str[j];
v8 = str[j + 2];
v7[2] = str[j + 3];
v7[3] = v8; // str[j + 2], str[j + 3] = str[j + 3], str[j + 2]
result = strlen(str);
v9 = j + 4;
j += 2;
}
while ( v9 < result );
return result;
}
照样学样逆一下就好了：
#!/usr/bin/env python
ciphertext = 'f72c5a36569418a20907b55be5bf95ad'
ciphertext = [ord(c) for c in ciphertext]
ciphertext[0], ciphertext[1] = ciphertext[1], ciphertext[0]
for i in range(len(ciphertext) / 2 - 1):
ciphertext[2 * i + 2], ciphertext[2 * i + 3] = ciphertext[2 * i + 3], ciphertext[2 * i + 2]
print ciphertext
for i in range(len(ciphertext) / 2):
ciphertext[i], ciphertext[i + 16] = ciphertext[i + 16], ciphertext[i]
print ciphertext
plaintext = ''.join([chr(c) for c in ciphertext])
print plaintext
# 90705bb55efb59da7fc2a5636549812a
Ph0en1x-100
MainActivity 中，encrypt 和 getFlag 函数在 Native 层实现，getSecret 函数返回某种哈希摘要的十六进制字符串。输入经过 encrypt 函数操作后的值与 getFlag 的值相等：
package com.ph0en1x.android_crackme;
import android.os.Bundle;
import android.support.v4.view.MotionEventCompat;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.widget.EditText;
import android.widget.Toast;
import java.io.UnsupportedEncodingException;
import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;
public class MainActivity extends AppCompatActivity {
EditText etFlag;
public native String encrypt(String str);
public native String getFlag();
static {
System.loadLibrary("phcm");
}
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView((int) R.layout.activity_main);
this.etFlag = (EditText) findViewById(R.id.flag_edit);
}
public void onGoClick(View v) {
if (getSecret(getFlag()).equals(getSecret(encrypt(this.etFlag.getText().toString())))) {
Toast.makeText(this, "Success", 1).show();
} else {
Toast.makeText(this, "Failed", 1).show();
}
}
public String getSecret(String string) { // 获取某种哈希摘要的十六进制字符串
try {
byte[] hash = MessageDigest.getInstance(encrypt("KE3TLNE6M43EK4GM34LKMLETG").substring(5, 8)).digest(string.getBytes("UTF-8"));
if (hash != null) {
StringBuilder hex = new StringBuilder(hash.length * 2);
for (byte b : hash) {
if ((b & MotionEventCompat.ACTION_MASK) < 16) {
hex.append("0");
}
hex.append(Integer.toHexString(b & MotionEventCompat.ACTION_MASK));
}
return hex.toString();
}
} catch (NoSuchAlgorithmException e) {
e.printStackTrace();
} catch (UnsupportedEncodingException e2) {
e2.printStackTrace();
}
return null;
}
}
在 IDA 中看到静态注册的 encrypt 函数，对字符串的每个值进行了减一操作：
jstring __fastcall Java_com_ph0en1x_android_1crackme_MainActivity_encrypt(_JNIEnv *a1, int a2, jstring a3)
{
_JNIEnv *v3; // r6
const char *v4; // r4
const char *i; // r5
v3 = a1;
v4 = a1->functions->GetStringUTFChars(&a1->functions, a3, 0);
for ( i = v4; i - v4 < strlen(v4); ++i )
--*i;
return v3->functions->NewStringUTF(&v3->functions, v4);
}
反向加一，得到指定的哈希摘要是 MD5：
#!/usr/bin/env python
import hashlib
md5hash = lambda m: hashlib.md5(m).hexdigest()
secret_digest = 'KE3TLNE6M43EK4GM34LKMLETG'
digest_type = ''
for i in range(len(secret_digest)):
digest_type += chr(ord(secret_digest[i]) - 1)
digest_type = digest_type[5:8]
print digest_type
# MD5
接下来看 getFlag 函数，读取内存中 data 的值，在循环中对相邻两个值进行相减并加 1，然后和 key 值异或，最后返回字符串：
jstring __fastcall Java_com_ph0en1x_android_1crackme_MainActivity_getFlag(_JNIEnv *a1)
{
char *v1; // r4
_JNIEnv *v2; // r7
char *v3; // r3
int v4; // r0
int v5; // r1
char *v6; // r2
char *v7; // r3
int v8; // r0
int v9; // r1
int v10; // r4
int v11; // r0
__int16 v12; // r3
signed int l1; // r8
signed int l2; // r0
char *v15; // r9
char a; // r3
char b; // t1
int idx; // r1
char s; // [sp+4h] [bp-5Ch]
char data_1[40]; // [sp+14h] [bp-4Ch]
char v22; // [sp+40h] [bp-20h]
v1 = data_1;
v2 = a1;
v3 = (char *)&data;
do
{
v4 = *(_DWORD *)v3; // low 4 bytes
v3 += 8;
v5 = *((_DWORD *)v3 - 1); // high 4 bytes
*(_DWORD *)v1 = v4;
*((_DWORD *)v1 + 1) = v5;
v1 += 8;
}
while ( v3 != "Hello Ph0en1x" );
v6 = &s;
v7 = "Hello Ph0en1x";
do
{
v8 = *(_DWORD *)v7;
v7 += 8;
v9 = *((_DWORD *)v7 - 1);
*(_DWORD *)v6 = v8;
*((_DWORD *)v6 + 1) = v9;
v10 = (int)(v6 + 8);
v6 += 8;
}
while ( v7 != "0en1x" );
v11 = *(_DWORD *)v7;
v12 = *((_WORD *)v7 + 2);
*(_DWORD *)v10 = v11;
*(_WORD *)(v10 + 4) = v12;
l1 = strlen(&s); // len('Hello Ph0en1x')
l2 = strlen(data_1) - 1; // len(data) - 1
v15 = &data_1[l2];
while ( l2 > 0 )
{
a = *v15 + 1;
*v15 = a; // data[l2] = data[l2] + 1
b = *(v15-- - 1); // data[l2 - 1]
idx = l2-- % l1; // l2 % l1
v15[1] = ((a - b) ^ *(&v22 + idx - 60)) - 1;// data[l2] = ((data[l2 + 1] - data[l2 - 1]) ^ s[idx]) - 1
}
data_1[0] = (data_1[0] ^ 0x48) - 1;
return v2->functions->NewStringUTF(&v2->functions, data_1);
}
因为涉及到了异或和减法的操作，需要注意到及时和 0xFF 与一下，不然结果会出错。脚本：
data = [0x2E, 0x36, 0x42, 0x4C, 0x5F, 0xBF, 0xE0, 0x3A, 0xA8, 0xC3, 0x20, 0x63, 0x89, 0xB7, 0xC0, 0x1C, 0x1D, 0x44, 0xC2, 0x28, 0x7F, 0xED, 0x02, 0x0E, 0x5D, 0x66, 0x8F, 0x98, 0xB5, 0xB7, 0xD0, 0x16, 0x4D, 0x83, 0xF8, 0xFB, 0x01, 0x43, 0x47]
key = 'Hello Ph0en1x'
l1 = len(key)
l2 = len(data)
for i in range(l2 - 1, 0, -1):
data[i] = (((data[i] + 1 - data[i - 1]) ^ ord(key[i % l1])) & 0xFF) - 1
data[0] = (data[0] ^ 0x48) - 1
flag = ''.join([chr(c + 1) for c in data])
print flag
# flag{Ar3_y0u_go1nG_70_scarborough_Fair}
RememberOther
这道题简直出的莫名其妙，发现如果用户名和密码都为空会返回 True，并且会弹出 strings.xml 中指向的 successed 字符串：
package com.droider.crackme0201;
import android.app.Activity;
import android.os.Bundle;
import android.support.v4.view.MotionEventCompat;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;
import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;
public class MainActivity extends Activity {
private Button btn_register;
private EditText edit_sn;
private EditText edit_userName;
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
setTitle(R.string.unregister);
this.edit_userName = (EditText) findViewById(R.id.edit_username);
this.edit_sn = (EditText) findViewById(R.id.edit_sn);
this.btn_register = (Button) findViewById(R.id.button_register);
this.btn_register.setOnClickListener(new OnClickListener() {
public void onClick(View v) {
if (MainActivity.this.checkSN(MainActivity.this.edit_userName.getText().toString().trim(), MainActivity.this.edit_sn.getText().toString().trim())) {
Toast.makeText(MainActivity.this, R.string.successed, 0).show();
MainActivity.this.btn_register.setEnabled(false);
MainActivity.this.setTitle(R.string.registered);
return;
}
Toast.makeText(MainActivity.this, R.string.unsuccessed, 0).show();
}
});
}
public boolean onCreateOptionsMenu(Menu menu) {
getMenuInflater().inflate(R.menu.activity_main, menu);
return true;
}
private boolean checkSN(String userName, String sn) {
try {
if (userName.length() == 0 && sn.length() == 0) {
return true;
}
if (userName == null || userName.length() == 0) {
return false;
}
if (sn == null || sn.length() != 16) {
return false;
}
MessageDigest digest = MessageDigest.getInstance("MD5");
digest.reset();
digest.update(userName.getBytes());
String hexstr = toHexString(digest.digest(), BuildConfig.FLAVOR);
StringBuilder sb = new StringBuilder();
for (int i = 0; i < hexstr.length(); i += 2) {
sb.append(hexstr.charAt(i));
}
if (sb.toString().equalsIgnoreCase(sn)) {
return true;
}
return false;
} catch (NoSuchAlgorithmException e) {
e.printStackTrace();
return false;
}
}
private static String toHexString(byte[] bytes, String separator) {
StringBuilder hexString = new StringBuilder();
for (byte b : bytes) {
String hex = Integer.toHexString(b & MotionEventCompat.ACTION_MASK);
if (hex.length() == 1) {
hexString.append('0');
}
hexString.append(hex).append(separator);
}
return hexString.toString();
}
}
在资源中找到指定的字符串：
<?xml version="1.0" encoding="utf-8"?>
<resources>
<string name="app_name">Crackme0201</string>
<string name="hint_sn">请输入16位的注册码</string>
<string name="hint_username">请输入用户名</string>
<string name="info">Xman Android</string>
<string name="menu_settings">Settings</string>
<string name="register">注 册</string>
<string name="registered">程序已注册</string>
<string name="sn">注册码：</string>
<string name="successed">md5:b3241668ecbeb19921fdac5ac1aafa69</string>
<string name="title_activity_main">Crackme</string>
<string name="unregister">程序未注册</string>
<string name="unsuccessed">无效用户名或注册码</string>
<string name="username">用户名：</string>
</resources>
搜一下 MD5，得到原字符串为 YOU_KNOW_。但结果不对，网上找到别人的 wp，说另一半要结合 word 中的提示，出题人说他不懂安卓，那么我们就懂了，flag 就是 YOU_KNOW_ANDROID。
黑客精神
这题相比前面的题目开始复杂起来了。在 MainActivity 中，看到一开始对一个 m 的值进行了判断。然后接下来在 onClick 中新建了一个 MyApp 实例，如果 m 为 0 就调用 doRegister 函数，其中跳转到 RegActivity。
package com.gdufs.xman;
import android.app.Activity;
import android.app.AlertDialog.Builder;
import android.content.ComponentName;
import android.content.DialogInterface;
import android.content.Intent;
import android.os.Bundle;
import android.os.Process;
import android.util.Log;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.Toast;
public class MainActivity extends Activity {
private static String workString;
private Button btn1;
public void onCreate(Bundle savedInstanceState) {
String str2;
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
String str1 = "Xman";
Log.d("com.gdufs.xman m=", str1);
MyApp myApp = (MyApp) getApplication();
int m = MyApp.m;
if (m == 0) {
str2 = "\u672a\u6ce8\u518c"; // 未注册
} else if (m == 1) {
str2 = "\u5df2\u6ce8\u518c"; // 已注册
} else {
str2 = "\u5df2\u6df7\u4e71"; // 已混乱
}
setTitle(str1 + str2);
this.btn1 = (Button) findViewById(R.id.button1);
this.btn1.setOnClickListener(new OnClickListener() {
public void onClick(View v) {
MyApp myApp = (MyApp) MainActivity.this.getApplication();
if (MyApp.m == 0) {
MainActivity.this.doRegister();
return;
}
((MyApp) MainActivity.this.getApplication()).work();
Toast.makeText(MainActivity.this.getApplicationContext(), MainActivity.workString, 0).show();
}
});
}
public void doRegister() {
new Builder(this).setTitle("\u6ce8\u518c").setMessage("Flag\u5c31\u5728\u524d\u65b9\uff01").setPositiveButton("\u6ce8\u518c", new DialogInterface.OnClickListener() { // Title => 注册 | Message => Flag就在前方！ | PositiveButton => 注册
public void onClick(DialogInterface dialog, int which) {
Intent intent = new Intent();
intent.setComponent(new ComponentName(BuildConfig.APPLICATION_ID, "com.gdufs.xman.RegActivity"));
MainActivity.this.startActivity(intent); // 跳转到RegActivity
MainActivity.this.finish();
}
}).setNegativeButton("\u4e0d\u73a9\u4e86", new DialogInterface.OnClickListener() { // NagetiveButton => 不玩了
public void onClick(DialogInterface dialog, int which) {
Process.killProcess(Process.myPid());
}
}).show();
}
public void work(String str) {
workString = str;
}
public boolean onCreateOptionsMenu(Menu menu) {
getMenuInflater().inflate(R.menu.menu_main, menu);
return true;
}
}
然后看一下 MyApp 类中，发现分别有三个函数在 Native 层实现。其中 onCreate 中调用了 initSN 函数。SN 猜测是 Serial Number 即序列号：
package com.gdufs.xman;
import android.app.Application;
import android.util.Log;
public class MyApp extends Application {
public static int m = 0;
public native void initSN();
public native void saveSN(String str);
public native void work();
static {
System.loadLibrary("myjni");
}
public void onCreate() {
initSN();
Log.d("com.gdufs.xman m=", String.valueOf(m));
super.onCreate();
}
}
RegActivity 中获取输入的字符串，并作为 SN 传入 saveSN 函数。然后 App 将会把自己的进程杀死：
package com.gdufs.xman;
import android.app.Activity;
import android.app.AlertDialog.Builder;
import android.content.DialogInterface;
import android.os.Bundle;
import android.os.Process;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;
public class RegActivity extends Activity {
private Button btn_reg;
private EditText edit_sn;
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_reg);
this.btn_reg = (Button) findViewById(R.id.button1);
this.edit_sn = (EditText) findViewById(R.id.editText1);
this.btn_reg.setOnClickListener(new OnClickListener() {
public void onClick(View v) {
String sn = RegActivity.this.edit_sn.getText().toString().trim();
if (sn == null || sn.length() == 0) {
Toast.makeText(RegActivity.this, "\u60a8\u7684\u8f93\u5165\u4e3a\u7a7a", 0).show(); // 您的输入为空
return;
}
((MyApp) RegActivity.this.getApplication()).saveSN(sn);
new Builder(RegActivity.this).setTitle("\u56de\u590d").setMessage("\u60a8\u7684\u6ce8\u518c\u7801\u5df2\u4fdd\u5b58").setPositiveButton("\u597d\u5427", new DialogInterface.OnClickListener() { // Title => 回复 | Message => 您的注册码已保存 | PositiveButton => 好吧
public void onClick(DialogInterface dialog, int which) {
Process.killProcess(Process.myPid());
}
}).show();
}
});
}
}
那么基本上就是求出正确的 SN 了。在 Native 查看，发现函数在 JNI_OnLoad 中动态注册：
signed int __fastcall JNI_OnLoad(_JavaVM *a1)
{
if ( a1->functions->GetEnv(&a1->functions, (void **)&g_env, 65542) )
return -1;
_android_log_print(2, "com.gdufs.xman", "JNI_OnLoad()");
native_class = (int)g_env->functions->FindClass(&g_env->functions, "com/gdufs/xman/MyApp");
if ( !g_env->functions->RegisterNatives(&g_env->functions, (jclass)native_class, (const JNINativeMethod *)gMethods, 3) )// register 3 methods
{
_android_log_print(2, "com.gdufs.xman", "RegisterNatives() --> nativeMethod() ok");
return 65542;
}
_android_log_print(6, "com.gdufs.xman", "RegisterNatives() --> nativeMethod() failed");
return -1;
}
先来看 initSN，其中读取 /sdcard/reg.dat 中的内容并和 EoPAoY62@ElRD 进行比较：
void __fastcall initSN(_JNIEnv *a1)
{
_JNIEnv *env; // r6
FILE *f; // r0
FILE *f_1; // r4
_JNIEnv *env_1; // r0
int v5; // r1
int len; // r7
char *data; // r5
_JNIEnv *env_2; // r0
int v9; // r1
env = a1;
f = fopen("/sdcard/reg.dat", "r+");
f_1 = f;
if ( !f ) // read file error
{
env_1 = env;
v5 = (int)f_1;
LABEL_5:
setValue(env_1, v5);
return;
}
fseek(f, 0, 2); // seek to file end ( SEEK_END )
len = ftell(f_1);
data = (char *)malloc(len + 1); // malloc error
if ( !data )
{
fclose(f_1);
env_1 = env;
v5 = 0;
goto LABEL_5;
}
fseek(f_1, 0, 0); // seek to file start ( SEEK_SET )
fread(data, len, 1u, f_1);
data[len] = 0;
if ( !strcmp(data, "EoPAoY62@ElRD") )
{
env_2 = env;
v9 = 1;
}
else
{
env_2 = env;
v9 = 0;
}
setValue(env_2, v9);
j_fclose(f_1);
}
其中看到有一个 setValue 函数，将 m 的值设为指定的值：
void __fastcall setValue(_JNIEnv *a1, int val)
{
int val_1; // r7
_JNIEnv *v3; // r4
jclass v4; // r0
void *v5; // r5
struct _jfieldID *v6; // r0
val_1 = val;
v3 = a1;
v4 = a1->functions->FindClass(&a1->functions, "com/gdufs/xman/MyApp");
v5 = v4;
v6 = v3->functions->GetStaticFieldID(&v3->functions, v4, "m", "I");
v3->functions->SetStaticIntField(&v3->functions, v5, v6, val_1);// set m = val
}
接下来看 saveSN，这里做一个循环，将 reg.dat 中的字符串取出来并和 key 进行异或：
int __fastcall saveSN(_JNIEnv *a1, int a2, jstring a3)
{
_JNIEnv *env; // r6
jstring str; // r9
FILE *v5; // r7
int *v7; // r4
const char *v8; // r3
int v9; // r0
int v10; // r1
_WORD *v11; // r5
JNIEnv *v12; // r0
int i; // r4
const struct JNINativeInterface *v14; // r3
signed int j; // r6
const char *utf_string; // r9
const char *data; // r5
signed int len; // r10
char val; // r2
char tmp; // r3
int v21; // [sp+0h] [bp-38h]
int v22; // [sp+14h] [bp-24h]
char v23; // [sp+18h] [bp-20h]
env = a1;
str = a3;
f = fopen("/sdcard/reg.dat", "w+");
if ( f )
{
v7 = &v21;
v8 = "W3_arE_whO_we_ARE";
do
{
v9 = *(_DWORD *)v8;
v8 += 8;
v10 = *((_DWORD *)v8 - 1);
*v7 = v9;
v7[1] = v10;
v11 = v7 + 2;
v7 += 2;
}
while ( v8 != "E" );
v12 = &env->functions;
i = 2016;
*v11 = *(_WORD *)v8;
v14 = env->functions;
j = 0;
utf_string = v14->GetStringUTFChars(v12, str, 0);
data = utf_string;
len = strlen(utf_string);
while ( j < len )
{
if ( j % 3 == 1 )
{
i = (i + 5) % 16;
val = *(&v23 + i - 23); // &v23 - 32 = &"3_arE_whO_we_ARE"
}
else if ( j % 3 == 2 )
{
i = (i + 7) % 15;
val = *(&v23 + i - 22); // &v23 - 22 = &"_arE_whO_we_ARE"
}
else
{
i = (i + 3) % 13;
val = *(&v23 + i - 21); // &v23 - 21 = &"arE_whO_we_ARE"
}
tmp = *data;
++j;
*((_BYTE *)++data - 1) = tmp ^ val;
}
fputs(utf_string, f);
}
else if ( v22 == _stack_chk_guard )
{
return j___android_log_print(3, "com.gdufs.xman", &unk_2DCA);
}
return j_fclose(f);
}
work 函数中初始化了 SN，获取了 m 的值，并最后调用 callWork：
void __fastcall work(_JNIEnv *a1)
{
_JNIEnv *env; // r4
jint m; // r0
_JNIEnv *env_1; // r0
void *v4; // r1
bool v5; // zf
env = a1;
initSN(a1);
m = getValue(env);
if ( m )
{
v5 = m == 1;
env_1 = env;
if ( v5 )
v4 = &unk_2E6B; // [0xE8, 0xBE, 0x93, 0xE5, 0x85, 0xA5, 0xE5, 0x8D, 0xB3, 0xE6, 0x98, 0xAF, 0x66, 0x6C, 0x61, 0x67, 0x2C, 0xE6, 0xA0, 0xBC, 0xE5, 0xBC, 0x8F, 0xE4, 0xB8, 0xBA, 0x78, 0x6D, 0x61, 0x6E, 0x7B, 0xE2, 0x80, 0xA6, 0xE2, 0x80, 0xA6, 0x7D, 0xEF, 0xBC, 0x81]
else
v4 = &unk_2E95; // [0xE7, 0x8A, 0xB6, 0xE6, 0x80, 0x81, 0xE4, 0xB8, 0x8D, 0xE5, 0xA4, 0xAA, 0xE5, 0xAF, 0xB9, 0xE3, 0x80, 0x82, 0xE3, 0x80, 0x82]
}
else
{
env_1 = env;
v4 = &unk_2E5B; // [0xE8, 0xBF, 0x98, 0xE4, 0xB8, 0x8D, 0xE8, 0xA1, 0x8C, 0xE5, 0x91, 0xA2, 0xEF, 0xBC, 0x81]
}
callWork(env_1, (int)v4);
}
其中 getValue 就是获取 m 的值：
jint __fastcall getValue(_JNIEnv *a1)
{
_JNIEnv *v1; // r4
jclass v2; // r0
void *v3; // r5
struct _jfieldID *v4; // r0
v1 = a1;
v2 = a1->functions->FindClass(&a1->functions, "com/gdufs/xman/MyApp");
v3 = v2;
v4 = v1->functions->GetStaticFieldID(&v1->functions, v2, "m", "I");
return v1->functions->GetStaticIntField(&v1->functions, v3, v4);// get m's value
}
callWork 中就是调用了 work 函数，这样看来是个死循环：
void __fastcall callWork(_JNIEnv *a1, void *a2)
{
const char *v2; // r8
_JNIEnv *env; // r4
jclass v4; // r0
void *v5; // r5
struct _jmethodID *v6; // r0
jobject v7; // r7
struct _jmethodID *v8; // r5
void (*v9)(JNIEnv *, jobject, jmethodID, ...); // r6
jstring v10; // r0
v2 = (const char *)a2;
env = a1;
v4 = a1->functions->FindClass(&a1->functions, "com/gdufs/xman/MainActivity");
v5 = v4;
v6 = env->functions->GetMethodID(&env->functions, v4, "<init>", "()V");
v7 = env->functions->NewObject(&env->functions, v5, v6);
v8 = env->functions->GetMethodID(&env->functions, v5, "work", "(Ljava/lang/String;)V");
if ( v8 )
{
v9 = env->functions->CallVoidMethod;
v10 = env->functions->NewStringUTF(&env->functions, v2);
v9(&env->functions, v7, v8, v10);
}
}
在 saveSN 中其实就是实际的算法，逆一下实现解 SN 脚本：
#!/usr/bin/env python
ciphertext = 'EoPAoY62@ElRD'
key = 'W3_arE_whO_we_ARE'
i = 2016
j = 0
l = len(ciphertext)
result = ''
while j < l:
if j % 3 == 1:
i = (i + 5) % 16
val = ord(key[i + 1])
elif j % 3 ==2:
i = (i + 7) % 15
val = ord(key[i + 2])
else:
i = (i + 3) % 13
val = ord(key[i + 3])
result += chr(ord(ciphertext[j]) ^ val)
j += 1
print result
easy-dex
首先查看 AndroidManifest.xml，发现启动 Activity 为 android.app.NativeActivity，是在 Native 层实现的安卓 Activity：
<?xml version="1.0" encoding="UTF-8"?>
<manifest android:versionCode="1" android:versionName="1.0" package="com.a.sample.findmydex" platformBuildVersionCode="24" platformBuildVersionName="7.0" xmlns:android="http://schemas.android.com/apk/res/android">
<uses-sdk android:minSdkVersion="19" android:targetSdkVersion="24" />
<application android:allowBackup="false" android:fullBackupContent="false" android:hasCode="false" android:icon="@mipmap/ic_launcher" android:label="@string/app_name" android:theme="@style/AppTheme">
<activity android:configChanges="0xa0" android:label="@string/app_name" android:name="android.app.NativeActivity">
<meta-data android:name="android.app.lib_name" android:value="native" />
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<activity android:name="com.a.sample.findmydex.MainActivity">
<intent-filter>
<action android:name="com.a.sample.findmydex.MAIN" />
<category android:name="android.intent.category.DEFAULT" />
</intent-filter>
</activity>
</application>
</manifest>
看了一下 Java 只有一个类：
class Placeholder {
Placeholder() {
super();
}
}
先查看 NativeActivity 中的 onCreate 函数，其中在 pthread_create 里的第三个参数是对应的 MainActivity 的入口点，即 android_app_entry：
int __fastcall ANativeActivity_onCreate(_DWORD *a1, int a2, size_t a3)
{
_DWORD *v3; // r8
int savedState; // r10
size_t savedStateSize; // r9
int activity; // r0
__int64 v7; // r2
char *v8; // r5
void *v9; // r0
int *v10; // r0
char *v11; // r0
pthread_attr_t attr; // [sp+4h] [bp-30h]
v3 = a1;
savedState = a2;
savedStateSize = a3;
activity = *a1;
*(_DWORD *)(activity + 20) = sub_3000;
*(_DWORD *)activity = sub_305A;
*(_DWORD *)(activity + 4) = sub_3062;
*(_DWORD *)(activity + 8) = sub_306A;
*(_DWORD *)(activity + 12) = sub_30BE;
HIDWORD(v7) = sub_30EE;
*(_DWORD *)(activity + 16) = sub_30C6;
LODWORD(v7) = sub_30DE;
*(_DWORD *)(activity + 56) = sub_30CE;
*(_DWORD *)(activity + 60) = sub_30D6;
*(_QWORD *)(activity + 24) = v7;
*(_DWORD *)(activity + 40) = sub_30F4;
*(_DWORD *)(activity + 44) = sub_30FC;
*(_DWORD *)(activity + 48) = sub_3102;
v8 = (char *)malloc(0x94u);
_aeabi_memclr4();
*((_DWORD *)v8 + 3) = v3;
pthread_mutex_init((pthread_mutex_t *)(v8 + 64), 0);
pthread_cond_init((pthread_cond_t *)(v8 + 68), 0);
if ( savedState )
{
v9 = malloc(savedStateSize);
*((_DWORD *)v8 + 5) = v9;
*((_DWORD *)v8 + 6) = savedStateSize;
_aeabi_memcpy(v9, savedState, savedStateSize);
}
if ( pipe(&attr.__align + 6) )
{
v10 = (int *)_errno();
v11 = strerror(*v10);
_android_log_print(6, "threaded_app", "could not create pipe: %s", v11);
v8 = 0;
}
else
{
*((_QWORD *)v8 + 9) = *((_QWORD *)&attr.__align + 3);
pthread_attr_init(&attr);
pthread_attr_setdetachstate(&attr, 1);
pthread_create((pthread_t *)v8 + 20, &attr, (void *(*)(void *))android_app_entry, v8);
pthread_mutex_lock((pthread_mutex_t *)(v8 + 64));
while ( !*((_DWORD *)v8 + 27) )
pthread_cond_wait((pthread_cond_t *)(v8 + 68), (pthread_mutex_t *)(v8 + 64));
pthread_mutex_unlock((pthread_mutex_t *)(v8 + 64));
}
v3[7] = v8;
return _stack_chk_guard - *(&attr.__align + 8);
}
在 android_app_entry 中，在 android_app_destroy 上面可以找到对应的 MainActivity 函数：
int __fastcall android_app_entry(int a1)
{
int v1; // r4
int v2; // r1
int v3; // r5
int result; // r0
char v5; // [sp+8h] [bp-14h]
char v6; // [sp+Ah] [bp-12h]
int v7; // [sp+Ch] [bp-10h]
v1 = a1;
*(_DWORD *)(a1 + 16) = AConfiguration_new();
v2 = *(_DWORD *)(*(_DWORD *)(v1 + 12) + 32);
AConfiguration_fromAssetManager();
AConfiguration_getLanguage(*(_DWORD *)(v1 + 16), &v6);
AConfiguration_getCountry(*(_DWORD *)(v1 + 16), &v5);
*(_DWORD *)(v1 + 84) = 1;
*(_DWORD *)(v1 + 88) = v1;
*(_DWORD *)(v1 + 92) = sub_3344;
*(_DWORD *)(v1 + 96) = 2;
*(_DWORD *)(v1 + 100) = v1;
*(_DWORD *)(v1 + 104) = sub_3370;
v3 = ALooper_prepare(1);
ALooper_addFd(v3, *(_DWORD *)(v1 + 72), 1, 1, 0, v1 + 84);
*(_DWORD *)(v1 + 28) = v3;
pthread_mutex_lock((pthread_mutex_t *)(v1 + 64));
*(_DWORD *)(v1 + 108) = 1;
pthread_cond_broadcast((pthread_cond_t *)(v1 + 68));
pthread_mutex_unlock((pthread_mutex_t *)(v1 + 64));
j_android_main(v1);
android_app_destroy(v1);
pthread_mutex_lock((pthread_mutex_t *)(v1 + 64));
if ( *(_DWORD *)(v1 + 32) )
AInputQueue_detachLooper();
AConfiguration_delete(*(_DWORD *)(v1 + 16));
*(_DWORD *)(v1 + 116) = 1;
pthread_cond_broadcast((pthread_cond_t *)(v1 + 68));
pthread_mutex_unlock((pthread_mutex_t *)(v1 + 64));
result = _stack_chk_guard - v7;
if ( _stack_chk_guard == v7 )
result = 0;
return result;
}
进入 MainActivity 之后，一开始有一段异或的数据：
*(_DWORD *)filename = 0x9D888DC6;
*(_DWORD *)&filename[4] = 0x888DC688;
*(_DWORD *)&filename[8] = 0x8AC6889D;
*(_DWORD *)&filename[12] = 0x88C78486;
*(_DWORD *)&filename[16] = 0x84889AC7;
*(_DWORD *)&filename[20] = 0xC78C8599;
*(_DWORD *)&filename[24] = 0x8D87808F;
*(_DWORD *)&filename[28] = 0x8C8D9084;
*(_DWORD *)&filename[32] = 0x808FC691;
*(_DWORD *)&filename[36] = 0xC69A8C85;
*(_DWORD *)&filename[40] = 0x9A88858A;
*(_DWORD *)&filename[44] = 0xC79A8C9A;
*(_DWORD *)&filename[48] = 0xE9918C8D;
filename[52] = 0;
*(_DWORD *)name = 0x9D888DC6;
*(_DWORD *)&name[4] = 0x888DC688;
*(_DWORD *)&name[8] = 0x8AC6889D;
*(_DWORD *)&name[12] = 0x88C78486;
*(_DWORD *)&name[16] = 0x84889AC7;
*(_DWORD *)&name[20] = 0xC78C8599;
*(_DWORD *)&name[24] = 0x8D87808F;
*(_DWORD *)&name[28] = 0x8C8D9084;
*(_DWORD *)&name[32] = 0x808FC691;
*(_DWORD *)&name[36] = 0xC69A8C85;
*(_DWORD *)&name[40] = 0x918C8D86;
name[46] = 0;
i = 1;
*(_WORD *)&name[44] = 0xE9C6u;
filename[0] = 47;
do
{
filename[i] ^= 0xE9u; // filename = '/data/data/com.a.sample.findmydex/files/classes.dex'
++i;
}
while ( i != 53 );
j = 1;
name[0] = 47;
do
{
name[j] ^= 0xE9u; // name = '/data/data/com.a.sample.findmydex/files/odex/'
++j;
}
while ( j != 47 );
解密一下，可以发现是生成目标 dex 文件和 odex 的路径：
#!/usr/bin/env python
def word2bytes(w):
return [w & 0xFF, (w >> 8) & 0xFF, (w >> 16) & 0xFF, w >> 24]
def bytes2word(bs):
return bs[0] | bs[1] << 8 | bs[2] << 16 | bs[3] << 24
def words2byte(ws):
result = []
for w in ws:
temp = word2bytes(w)
for b in temp:
result.append(b)
return result
def bytes2words(bs):
result = []
for i in range(len(bs) / 4):
temp = bytes2word(bs[4*i:4*i+4])
result.append(temp)
return result
filename = [0x9D888DC6, 0x888DC688, 0x8AC6889D, 0x88C78486, 0x84889AC7, 0xC78C8599, 0x8D87808F, 0x8C8D9084, 0x808FC691, 0xC69A8C85, 0x9A88858A, 0xC79A8C9A, 0xE9918C8D]
name = [0x9D888DC6, 0x888DC688, 0x8AC6889D, 0x88C78486, 0x84889AC7, 0xC78C8599, 0x8D87808F, 0x8C8D9084, 0x808FC691, 0xC69A8C85, 0x918C8D86, 0x0000E9C6]
filename = words2byte(filename)
name = words2byte(name)
filename = chr(47) + ''.join(list(map(lambda c: chr(c ^ 0xE9), filename[1:])))
name = chr(47) + ''.join(list(map(lambda c: chr(c ^ 0xE9), name[1:])))
print filename
# /data/data/com.a.sample.findmydex/files/classes.dex
print name
# /data/data/com.a.sample.findmydex/files/odex/
然后接下来，可以看到一些涉及到 OpenGL 库的函数：
...
_android_log_print(4, "FindMyDex", "Can you shake your phone 100 times in 10 seconds?");
v10 = 0;
do
{
while ( 1 )
{
v12 = 0;
if ( !v30 )
v12 = -1;
v13 = ALooper_pollAll(v12, 0, &v25, &v24);// get time
if ( v13 >= 0 )
break;
if ( v30 )
{
v11 = v31 + 0.01;
if ( (float)(v31 + 0.01) > 1.0 )
v11 = 0.0;
v31 = v11;
sub_2C14((int)&v26); // OpenGL
}
}
...
int __fastcall sub_2C14(int a1)
{
int v1; // r4
int result; // r0
v1 = a1;
result = *(_DWORD *)(a1 + 20);
if ( !result )
return result;
glClearColor(
(float)*(signed int *)(v1 + 44) / (float)*(signed int *)(v1 + 32),// red
*(GLclampf *)(v1 + 40), // green
(float)*(signed int *)(v1 + 48) / (float)*(signed int *)(v1 + 36),// blue
1.0);
glClear(0x4000u);
result = j_eglSwapBuffers(*(_QWORD *)(v1 + 20), *(_QWORD *)(v1 + 20) >> 32);
return result;
}
这部分不去仔细看，可以直接根据 log 来判断程序的流程，可以判断出是要求在 10 秒内摇 100 次手机。在 (times - 1) <= 88 处可以看到开始对数据进行解压缩处理。在后面 times == 100，可以判断是达到了 100 次后，开始对将数据输出到文件中：
...
_android_log_print(4, "FindMyDex", "Can you shake your phone 100 times in 10 seconds?");
...
_android_log_print(4, "FindMyDex", "Oh yeah~ You Got it~ %d times to go~", 99 - v10);
...
if ( (unsigned int)(times - 1) <= 88 )
{
v10 = times;
v15 = times / 10;
if ( times % 10 == 9 )
{
v16 = size_1;
v17 = (signed int)size_1 / 10;
v18 = (v15 + 1) * ((signed int)size_1 / 10);
if ( (signed int)size_1 / 10 * v15 < v18 )
{
v19 = &data[v17 * v15];
do
{
--v17;
*v19++ ^= times;
}
while ( v17 );
}
if ( times == 89 )
{
while ( v18 < (signed int)v16 )
data[v18++] ^= 0x59u;
}
v10 = times + 1;
}
}
if ( times == 100 ) // reach the target
{
if ( (signed int)(time(0) - v6) > 9 )
{
_android_log_print(4, "FindMyDex", "OH~ You are too slow. Please try again");
_aeabi_memcpy(data, &data_1, size_1);
v10 = 0;
}
else
{
v20 = v6;
if ( uncompress(dest, &destLen, data, (uLong)size_1) )// uncompress data
_android_log_print(5, "FindMyDex", "Dangerous operation detected.");
v21 = open(filename, 577, 511);
if ( !v21 )
_android_log_print(5, "FindMyDex", "Something wrong with the permission.");
write(v21, dest, destLen);
close(v21);
free(dest);
free(data);
if ( access(name, 0) && mkdir(name, 0x1FFu) )
_android_log_print(5, "FindMyDex", "Something wrong with the permission..");
sub_2368((int)v1);
remove(filename);
_android_log_print(4, "FindMyDex", "Congratulations!! You made it!");
sub_2250(v1);
v10 = 0x80000000;
v6 = v20;
}
}
}
}
...
用 IDC 脚本把数据 dump 下来：
static main() {
auto fp, start, end, len, b;
fp = fopen("dump.data", "wb");
start = 0x7004;
len = 0x3CA10;
end = start + len;
for (b = start; b < end; b++) {
fputc(Byte(b), fp);
}
}
然后实现一下对 dex 文件的解压缩过程：
#!/usr/bin/env python
import zlib
with open('dump.data', 'rb') as f:
data = f.read()
data = [ord(c) for c in data]
size = 0x3CA10
for times in range(90):
v15 = times / 10
if times % 10 == 9:
v16 = size
v17 = size / 10
v18 = (v15 + 1) * (size / 10)
if size / 10 * v15 < v18:
for i in range(v17):
data[v17 * v15 + i] ^= times
if times == 89:
while v18 - v16 < 0:
data[v18] ^= 0x59
v18 += 1
data = ''.join([chr(c) for c in data])
data = zlib.decompress(data)
with open('dump.dex', 'wb') as f:
for c in data:
f.write(c)
接下来用 JEB 对 dex 文件进行分析。首先在 MainActivity 中，变量 m 是密文，onCreate 中调用了 a 类。函数 b 则是一个加密函数，其中涉及到了 b 类中函数：
package com.a.sample.findmydex;
import android.content.Context;
import android.os.Bundle;
import android.support.v7.a.u;
import java.io.BufferedInputStream;
import java.io.ByteArrayInputStream;
import java.nio.ByteBuffer;
import java.util.ArrayList;
public class MainActivity extends u {
private static byte[] m;
static {
MainActivity.m = new byte[]{-120, 77, -14, -38, 17, 5, -42, 44, -32, 109, 85, 0x1F, 24, -91, -112, -83, 0x40, -83, -128, 84, 5, -94, -98, -30, 18, 70, -26, 71, 5, -99, -62, -58, 0x75, 29, -44, 6, 0x70, -4, 81, 84, 9, 22, -51, 0x5F, -34, 12, 0x2F, 77};
}
public MainActivity() {
super();
}
static byte[] a(String arg1, String arg2) {
return MainActivity.b(arg1, arg2);
}
private static byte[] b(String arg7, String arg8) {
byte[] v0_1;
try {
BufferedInputStream v2 = new BufferedInputStream(new ByteArrayInputStream(arg7.getBytes()));
byte[] v1 = new byte[16];
ArrayList v3 = new ArrayList();
Object v4 = b.a(arg8.getBytes()); // 处理密钥
while(v2.read(v1, 0, 16) != -1) { // 循环加密，采用ECB模式
v3.add(b.a(v1, 0, v4));
v1 = new byte[16];
}
ByteBuffer v2_1 = ByteBuffer.allocate(v3.size() * 16); // 转换成字节数组
Object[] v3_1 = v3.toArray();
int v4_1 = v3_1.length;
int v1_1;
for(v1_1 = 0; v1_1 < v4_1; ++v1_1) {
v2_1.put(v3_1[v1_1]);
}
v0_1 = v2_1.array();
}
catch(Exception v0) {
v0_1 = new byte[1];
}
return v0_1;
}
static byte[] i() { // Cipheretxt
return MainActivity.m;
}
protected void onCreate(Bundle arg4) {
super.onCreate(arg4);
this.setContentView(0x7F04001A); // activity_main
this.findViewById(0x7F0B0055).setOnClickListener(new a(this, this.findViewById(0x7F0B0054), ((Context)this))); // button | edit_text
}
}
类 a 中设置了一个监听按钮的事件，并将输入和指定的字符串作为参数传入 MainActivity 的函数 a。并与密文进行比较：
package com.a.sample.findmydex;
import android.content.Context;
import android.view.View$OnClickListener;
import android.view.View;
import android.widget.EditText;
import android.widget.Toast;
import java.util.Arrays;
class a implements View$OnClickListener {
a(MainActivity arg1, EditText arg2, Context arg3) {
this.c = arg1;
this.a = arg2;
this.b = arg3;
super();
}
public void onClick(View arg5) {
if(Arrays.equals(MainActivity.a(this.a.getText().toString(), this.c.getString(0x7F060023)), MainActivity.i())) { // I have a male fish and a female fish.
Toast.makeText(this.b, this.c.getString(0x7F060025), 1).show(); // Yes! You got me! :)
}
else {
Toast.makeText(this.b, this.c.getString(0x7F060022), 1).show(); // NO~ You don't get me~ T_T
}
}
}
b 类的 a 函数主要将数组的长度补齐成 8 的倍数，并调用 b 函数：
public static Object a(byte[] arg5) { // 补齐块
Object v0_3;
int v1 = 0x20;
int v0 = 0;
Class v2 = b.class;
__monitor_enter(v2);
try {
if(arg5.length > v1 || arg5.length % 8 != 0) { // 长度大于32或不是8的倍数
if(arg5.length <= v1) {
v1 = arg5.length;
}
if((v1 & 7) > 0) { // 判断数组长度是否是8的倍数，不是的话补齐
v0 = 1;
}
byte[] v0_2 = new byte[v0 * 8 + v1];
System.arraycopy(arg5, 0, v0_2, 0, v1);
arg5 = v0_2;
}
v0_3 = b.b(arg5);
}
catch(Throwable v0_1) {
__monitor_exit(v2);
throw v0_1;
}
__monitor_exit(v2);
return v0_3;
}
b 类中的 b 函数是一个处理密钥的函数：
private static Object b(byte[] arg19) { // 处理密钥
Object[] v1_2;
int[] v13;
int v10_1;
int v9_1;
int v8_1;
int[] v11_1;
int v12;
int v3;
int v1_1;
int v5;
int v4;
Class v6 = b.class;
__monitor_enter(v6);
if(arg19 != null) {
goto label_10;
}
try {
throw new InvalidKeyException("Empty key");
label_10:
v4 = arg19.length;
if(v4 != 8 && v4 != 16 && v4 != 24 && v4 != 0x20) {
throw new InvalidKeyException("Incorrect key length");
}
int v7 = v4 / 8;
v5 = 40;
int[] v8 = new int[4];
int[] v9 = new int[4];
int[] v10 = new int[4];
v1_1 = 0;
v3 = 0;
int v2;
for(v2 = v7 - 1; v3 < 4; --v2) {
if(v1_1 >= v4) {
break;
}
int v11 = v1_1 + 1;
v12 = v11 + 1;
v1_1 = arg19[v1_1] & 0xFF | (arg19[v11] & 0xFF) << 8;
v11 = v12 + 1;
v1_1 |= (arg19[v12] & 0xFF) << 16;
v12 = v11 + 1;
v8[v3] = v1_1 | (arg19[v11] & 0xFF) << 24;
v1_1 = v12 + 1;
v11 = arg19[v12] & 0xFF;
v12 = v1_1 + 1;
v1_1 = (arg19[v1_1] & 0xFF) << 8 | v11;
v11 = v12 + 1;
v12 = (arg19[v12] & 0xFF) << 16 | v1_1;
v1_1 = v11 + 1;
v9[v3] = (arg19[v11] & 0xFF) << 24 | v12;
v10[v2] = b.a(v8[v3], v9[v3]);
++v3;
}
v11_1 = new int[v5];
v1_1 = 0;
v2 = 0;
while(v2 < 20) {
v3 = b.a(v7, v1_1, v8);
v4 = b.a(v7, 0x1010101 + v1_1, v9);
v4 = v4 >>> 24 | v4 << 8;
v3 += v4;
v11_1[v2 * 2] = v3;
v3 += v4;
v11_1[v2 * 2 + 1] = v3 >>> 23 | v3 << 9;
++v2;
v1_1 += 0x2020202;
}
v8_1 = v10[0];
v9_1 = v10[1];
v12 = v10[2];
v10_1 = v10[3];
v13 = new int[0x400];
v2 = 0;
while(true) {
label_120:
if(v2 >= 0x100) {
goto label_324;
}
switch(v7 & 3) {
case 0: {
goto label_183;
}
case 1: {
goto label_126;
}
case 2: {
goto label_332;
}
case 3: {
goto label_337;
}
}
goto label_124;
}
}
catch(Throwable v1) {
goto label_8;
}
label_337:
v1_1 = v2;
v3 = v2;
v4 = v2;
v5 = v2;
goto label_211;
try {
label_183:
v5 = b.a[1][v2] & 0xFF ^ b.e(v10_1);
v4 = b.a[0][v2] & 0xFF ^ b.f(v10_1);
v3 = b.g(v10_1) ^ b.a[0][v2] & 0xFF;
v1_1 = b.a[1][v2] & 0xFF ^ b.h(v10_1);
label_211:
v5 = b.a[1][v5] & 0xFF ^ b.e(v12);
v4 = b.a[1][v4] & 0xFF ^ b.f(v12);
v3 = b.a[0][v3] & 0xFF ^ b.g(v12);
v1_1 = b.a[0][v1_1] & 0xFF ^ b.h(v12);
goto label_239;
}
catch(Throwable v1) {
goto label_8;
}
label_332:
v1_1 = v2;
v3 = v2;
v4 = v2;
v5 = v2;
try {
label_239:
v13[v2 * 2] = b.b[0][b.a[0][b.a[0][v5] & 0xFF ^ b.e(v9_1)] & 0xFF ^ b.e(v8_1)];
v13[v2 * 2 + 1] = b.b[1][b.a[0][b.a[1][v4] & 0xFF ^ b.f(v9_1)] & 0xFF ^ b.f(v8_1)];
v13[v2 * 2 + 0x200] = b.b[2][b.a[1][b.a[0][v3] & 0xFF ^ b.g(v9_1)] & 0xFF ^ b.g(v8_1)];
v13[v2 * 2 + 0x201] = b.b[3][b.a[1][b.a[1][v1_1] & 0xFF ^ b.h(v9_1)] & 0xFF ^ b.h(v8_1)];
goto label_124;
label_126:
v13[v2 * 2] = b.b[0][b.a[0][v2] & 0xFF ^ b.e(v8_1)];
v13[v2 * 2 + 1] = b.b[1][b.a[0][v2] & 0xFF ^ b.f(v8_1)];
v13[v2 * 2 + 0x200] = b.b[2][b.a[1][v2] & 0xFF ^ b.g(v8_1)];
v13[v2 * 2 + 0x201] = b.b[3][b.a[1][v2] & 0xFF ^ b.h(v8_1)];
label_124:
++v2;
goto label_120;
label_324:
v1_2 = new Object[]{v13, v11_1};
}
catch(Throwable v1) {
goto label_8;
}
__monitor_exit(v6);
return v1_2;
label_8:
__monitor_exit(v6);
throw v1;
}
这个 a 函数判断传入的字节数组、、密钥都不为空，并调用 b 函数：
public static byte[] a(byte[] arg1, int arg2, Object arg3) {
byte[] v0 = arg1 == null || arg3 == null || arg2 < 0 ? null : b.b(arg1, arg2, arg3);
return v0;
}
b 函数应该就是对数据的加密过程，明显是个 16 次轮函数的分组密码：
private static byte[] b(byte[] arg12, int arg13, Object arg14) {
int[] v0 = arg14[0];
Object v1 = arg14[1];
int v2 = arg13 + 1;
int v4 = v2 + 1;
int v3 = v4 + 1;
v2 = (arg12[v2] & 0xFF) << 8 | arg12[arg13] & 0xFF | (arg12[v4] & 0xFF) << 16;
v4 = v3 + 1;
v2 |= (arg12[v3] & 0xFF) << 24;
v3 = v4 + 1;
int v5 = v3 + 1;
v3 = (arg12[v3] & 0xFF) << 8 | arg12[v4] & 0xFF;
v4 = v5 + 1;
v3 |= (arg12[v5] & 0xFF) << 16;
v5 = v4 + 1;
v3 |= (arg12[v4] & 0xFF) << 24;
v4 = v5 + 1;
int v6 = v4 + 1;
v4 = (arg12[v4] & 0xFF) << 8 | arg12[v5] & 0xFF;
v5 = v6 + 1;
v4 |= (arg12[v6] & 0xFF) << 16;
v6 = v5 + 1;
v4 |= (arg12[v5] & 0xFF) << 24;
v5 = v6 + 1;
int v7 = v5 + 1;
int v8 = (arg12[v5] & 0xFF) << 8 | arg12[v6] & 0xFF | (arg12[v7] & 0xFF) << 16 | (arg12[v7 + 1] & 0xFF) << 24;
v7 = v2 ^ v1[0];
v6 = v3 ^ v1[1];
v5 = v4 ^ v1[2];
v4 = v8 ^ v1[3];
v3 = 8;
for(v2 = 0; v2 < 16; v2 += 2) {
v8 = b.a(v0, v7, 0);
int v9 = b.a(v0, v6, 3);
int v11 = v3 + 1;
v3 = v1[v3] + (v8 + v9) ^ v5;
v5 = v3 >>> 1 | v3 << 0x1F;
v3 = v4 << 1 | v4 >>> 0x1F;
v4 = v9 * 2 + v8;
v8 = v11 + 1;
v4 = v4 + v1[v11] ^ v3;
v3 = b.a(v0, v5, 0);
v9 = b.a(v0, v4, 3);
v11 = v8 + 1;
v7 ^= v1[v8] + (v3 + v9);
v7 = v7 << 0x1F | v7 >>> 1;
v8 = v9 * 2 + v3;
v3 = v11 + 1;
v6 = (v6 >>> 0x1F | v6 << 1) ^ v8 + v1[v11];
}
int v0_1 = v1[4] ^ v5;
v2 = v1[5] ^ v4;
v3 = v1[6] ^ v7;
int v1_1 = v1[7] ^ v6;
return new byte[]{((byte)v0_1), ((byte)(v0_1 >>> 8)), ((byte)(v0_1 >>> 16)), ((byte)(v0_1 >>> 24)), ((byte)v2), ((byte)(v2 >>> 8)), ((byte)(v2 >>> 16)), ((byte)(v2 >>> 24)), ((byte)v3), ((byte)(v3 >>> 8)), ((byte)(v3 >>> 16)), ((byte)(v3 >>> 24)), ((byte)v1_1), ((byte)(v1_1 >>> 8)), ((byte)(v1_1 >>> 16)), ((byte)(v1_1 >>> 24))};
}
分组密码可以去找一下特征，看到了 b 类的头上定义了两个数据，转成 16 进制之后拿去搜一下：
v0[0] = new byte[]{-87, 103, -77, -24, 4, -3, -93, 0x76, -102, -110, -128, 120, -28, -35, -47, 56, 13, -58, 53, -104, 24, -9, -20, 108, 67, 0x75, 55, 38, -6, 19, -108, 72, -14, -48, -117, 0x30, -124, 84, -33, 35, 25, 91, 61, 89, -13, -82, -94, -126, 99, 1, -125, 46, -39, 81, -101, 0x7C, -90, -21, -91, -66, 22, 12, -29, 97, -64, -116, 58, -11, 0x73, 44, 37, 11, -69, 78, -119, 107, 83, 106, -76, -15, -31, -26, -67, 69, -30, -12, -74, 102, -52, -107, 3, 86, -44, 28, 30, -41, -5, -61, -114, -75, -23, -49, -65, -70, -22, 0x77, 57, -81, 51, -55, 98, 0x71, -127, 0x79, 9, -83, 36, -51, -7, -40, -27, -59, -71, 77, 68, 8, -122, -25, -95, 29, -86, -19, 6, 0x70, -78, -46, 65, 0x7B, -96, 17, 49, -62, 39, -112, 0x20, -10, 0x60, -1, -106, 92, -79, -85, -98, -100, 82, 27, 0x5F, -109, 10, -17, -111, -123, 73, -18, 45, 0x4F, -113, 59, 71, -121, 109, 70, -42, 62, 105, 100, 42, -50, -53, 0x2F, -4, -105, 5, 0x7A, -84, 0x7F, -43, 26, 75, 14, -89, 90, 40, 20, 0x3F, 41, -120, 60, 76, 2, -72, -38, -80, 23, 85, 0x1F, -118, 0x7D, 87, -57, -115, 0x74, -73, -60, -97, 0x72, 0x7E, 21, 34, 18, 88, 7, -103, 52, 110, 80, -34, 104, 101, -68, -37, -8, -56, -88, 43, 0x40, -36, -2, 50, -92, -54, 16, 33, -16, -45, 93, 15, 0, 0x6F, -99, 54, 66, 74, 94, -63, -32}; // 0xA9, 0x67, 0xB3, 0xE8, 0x04, 0xFD, 0xA3, 0x76, 0x9A, 0x92, 0x80, 0x78, 0xE4, 0xDD, 0xD1, 0x38, 0x0D, 0xC6, 0x35, 0x98, 0x18, 0xF7, 0xEC, 0x6C, 0x43, 0x75, 0x37, 0x26, 0xFA, 0x13, 0x94, 0x48, 0xF2, 0xD0, 0x8B, 0x30, 0x84, 0x54, 0xDF, 0x23, 0x19, 0x5B, 0x3D, 0x59, 0xF3, 0xAE, 0xA2, 0x82, 0x63, 0x01, 0x83, 0x2E, 0xD9, 0x51, 0x9B, 0x7C, 0xA6, 0xEB, 0xA5, 0xBE, 0x16, 0x0C, 0xE3, 0x61, 0xC0, 0x8C, 0x3A, 0xF5, 0x73, 0x2C, 0x25, 0x0B, 0xBB, 0x4E, 0x89, 0x6B, 0x53, 0x6A, 0xB4, 0xF1, 0xE1, 0xE6, 0xBD, 0x45, 0xE2, 0xF4, 0xB6, 0x66, 0xCC, 0x95, 0x03, 0x56, 0xD4, 0x1C, 0x1E, 0xD7, 0xFB, 0xC3, 0x8E, 0xB5, 0xE9, 0xCF, 0xBF, 0xBA, 0xEA, 0x77, 0x39, 0xAF, 0x33, 0xC9, 0x62, 0x71, 0x81, 0x79, 0x09, 0xAD, 0x24, 0xCD, 0xF9, 0xD8, 0xE5, 0xC5, 0xB9, 0x4D, 0x44, 0x08, 0x86, 0xE7, 0xA1, 0x1D, 0xAA, 0xED, 0x06, 0x70, 0xB2, 0xD2, 0x41, 0x7B, 0xA0, 0x11, 0x31, 0xC2, 0x27, 0x90, 0x20, 0xF6, 0x60, 0xFF, 0x96, 0x5C, 0xB1, 0xAB, 0x9E, 0x9C, 0x52, 0x1B, 0x5F, 0x93, 0x0A, 0xEF, 0x91, 0x85, 0x49, 0xEE, 0x2D, 0x4F, 0x8F, 0x3B, 0x47, 0x87, 0x6D, 0x46, 0xD6, 0x3E, 0x69, 0x64, 0x2A, 0xCE, 0xCB, 0x2F, 0xFC, 0x97, 0x05, 0x7A, 0xAC, 0x7F, 0xD5, 0x1A, 0x4B, 0x0E, 0xA7, 0x5A, 0x28, 0x14, 0x3F, 0x29, 0x88, 0x3C, 0x4C, 0x02, 0xB8, 0xDA, 0xB0, 0x17, 0x55, 0x1F, 0x8A, 0x7D, 0x57, 0xC7, 0x8D, 0x74, 0xB7, 0xC4, 0x9F, 0x72, 0x7E, 0x15, 0x22, 0x12, 0x58, 0x07, 0x99, 0x34, 0x6E, 0x50, 0xDE, 0x68, 0x65, 0xBC, 0xDB, 0xF8, 0xC8, 0xA8, 0x2B, 0x40, 0xDC, 0xFE, 0x32, 0xA4, 0xCA, 0x10, 0x21, 0xF0, 0xD3, 0x5D, 0x0F, 0x00, 0x6F, 0x9D, 0x36, 0x42, 0x4A, 0x5E, 0xC1, 0xE0
v0[1] = new byte[]{0x75, -13, -58, -12, -37, 0x7B, -5, -56, 74, -45, -26, 107, 69, 0x7D, -24, 75, -42, 50, -40, -3, 55, 0x71, -15, -31, 0x30, 15, -8, 27, -121, -6, 6, 0x3F, 94, -70, -82, 91, -118, 0, -68, -99, 109, -63, -79, 14, -128, 93, -46, -43, -96, -124, 7, 20, -75, -112, 44, -93, -78, 0x73, 76, 84, -110, 0x74, 54, 81, 56, -80, -67, 90, -4, 0x60, 98, -106, 108, 66, -9, 16, 0x7C, 40, 39, -116, 19, -107, -100, -57, 36, 70, 59, 0x70, -54, -29, -123, -53, 17, -48, -109, -72, -90, -125, 0x20, -1, -97, 0x77, -61, -52, 3, 0x6F, 8, -65, 0x40, -25, 43, -30, 0x79, 12, -86, -126, 65, 58, -22, -71, -28, -102, -92, -105, 0x7E, -38, 0x7A, 23, 102, -108, -95, 29, 61, -16, -34, -77, 11, 0x72, -89, 28, -17, -47, 83, 62, -113, 51, 38, 0x5F, -20, 0x76, 42, 73, -127, -120, -18, 33, -60, 26, -21, -39, -59, 57, -103, -51, -83, 49, -117, 1, 24, 35, -35, 0x1F, 78, 45, -7, 72, 0x4F, -14, 101, -114, 120, 92, 88, 25, -115, -27, -104, 87, 103, 0x7F, 5, 100, -81, 99, -74, -2, -11, -73, 60, -91, -50, -23, 104, 68, -32, 77, 67, 105, 41, 46, -84, 21, 89, -88, 10, -98, 110, 71, -33, 52, 53, 106, -49, -36, 34, -55, -64, -101, -119, -44, -19, -85, 18, -94, 13, 82, -69, 2, 0x2F, -87, -41, 97, 30, -76, 80, 4, -10, -62, 22, 37, -122, 86, 85, 9, -66, -111}; // 0x75, 0xF3, 0xC6, 0xF4, 0xDB, 0x7B, 0xFB, 0xC8, 0x4A, 0xD3, 0xE6, 0x6B, 0x45, 0x7D, 0xE8, 0x4B, 0xD6, 0x32, 0xD8, 0xFD, 0x37, 0x71, 0xF1, 0xE1, 0x30, 0x0F, 0xF8, 0x1B, 0x87, 0xFA, 0x06, 0x3F, 0x5E, 0xBA, 0xAE, 0x5B, 0x8A, 0x00, 0xBC, 0x9D, 0x6D, 0xC1, 0xB1, 0x0E, 0x80, 0x5D, 0xD2, 0xD5, 0xA0, 0x84, 0x07, 0x14, 0xB5, 0x90, 0x2C, 0xA3, 0xB2, 0x73, 0x4C, 0x54, 0x92, 0x74, 0x36, 0x51, 0x38, 0xB0, 0xBD, 0x5A, 0xFC, 0x60, 0x62, 0x96, 0x6C, 0x42, 0xF7, 0x10, 0x7C, 0x28, 0x27, 0x8C, 0x13, 0x95, 0x9C, 0xC7, 0x24, 0x46, 0x3B, 0x70, 0xCA, 0xE3, 0x85, 0xCB, 0x11, 0xD0, 0x93, 0xB8, 0xA6, 0x83, 0x20, 0xFF, 0x9F, 0x77, 0xC3, 0xCC, 0x03, 0x6F, 0x08, 0xBF, 0x40, 0xE7, 0x2B, 0xE2, 0x79, 0x0C, 0xAA, 0x82, 0x41, 0x3A, 0xEA, 0xB9, 0xE4, 0x9A, 0xA4, 0x97, 0x7E, 0xDA, 0x7A, 0x17, 0x66, 0x94, 0xA1, 0x1D, 0x3D, 0xF0, 0xDE, 0xB3, 0x0B, 0x72, 0xA7, 0x1C, 0xEF, 0xD1, 0x53, 0x3E, 0x8F, 0x33, 0x26, 0x5F, 0xEC, 0x76, 0x2A, 0x49, 0x81, 0x88, 0xEE, 0x21, 0xC4, 0x1A, 0xEB, 0xD9, 0xC5, 0x39, 0x99, 0xCD, 0xAD, 0x31, 0x8B, 0x01, 0x18, 0x23, 0xDD, 0x1F, 0x4E, 0x2D, 0xF9, 0x48, 0x4F, 0xF2, 0x65, 0x8E, 0x78, 0x5C, 0x58, 0x19, 0x8D, 0xE5, 0x98, 0x57, 0x67, 0x7F, 0x05, 0x64, 0xAF, 0x63, 0xB6, 0xFE, 0xF5, 0xB7, 0x3C, 0xA5, 0xCE, 0xE9, 0x68, 0x44, 0xE0, 0x4D, 0x43, 0x69, 0x29, 0x2E, 0xAC, 0x15, 0x59, 0xA8, 0x0A, 0x9E, 0x6E, 0x47, 0xDF, 0x34, 0x35, 0x6A, 0xCF, 0xDC, 0x22, 0xC9, 0xC0, 0x9B, 0x89, 0xD4, 0xED, 0xAB, 0x12, 0xA2, 0x0D, 0x52, 0xBB, 0x02, 0x2F, 0xA9, 0xD7, 0x61, 0x1E, 0xB4, 0x50, 0x04, 0xF6, 0xC2, 0x16, 0x25, 0x86, 0x56, 0x55, 0x09, 0xBE, 0x91
发现是 twofish 算法：
上面的一些资源可以在 Resources/values/public.xml 中找到 ID 对应的字符串名：
<?xml version="1.0" encoding="UTF-8"?>
<resources>
...
<public id="0x7f04001a" name="activity_main" type="layout" />
...
<public id="0x7f060022" name="no" type="string" />
<public id="0x7f060023" name="two_fish" type="string" />
...
<public id="0x7f060025" name="yes" type="string" />
...
<public id="0x7f0b0054" name="edit_text" type="id" />
<public id="0x7f0b0055" name="button" type="id" />
...
</resources>
可以在 Resources/values/strings.xml 中找到对应的字符串：
<?xml version="1.0" encoding="UTF-8"?>
<resources>
...
<string name="no">
NO~ You don't get me~ T_T</string>
<string name="two_fish">
I have a male fish and a female fish.</string>
<string name="what_else">
What else?</string>
<string name="yes">
Yes! You got me! :)</string>
</resources>
最后找个库实现一下解密：
#!/usr/bin/env python
from twofish import Twofish
ciphertext = [0x88, 0x4D, 0xF2, 0xDA, 0x11, 0x05, 0xD6, 0x2C, 0xE0, 0x6D, 0x55, 0x1F, 0x18, 0xA5, 0x90, 0xAD, 0x40, 0xAD, 0x80, 0x54, 0x05, 0xA2, 0x9E, 0xE2, 0x12, 0x46, 0xE6, 0x47, 0x05, 0x9D, 0xC2, 0xC6, 0x75, 0x1D, 0xD4, 0x06, 0x70, 0xFC, 0x51, 0x54, 0x09, 0x16, 0xCD, 0x5F, 0xDE, 0x0C, 0x2F, 0x4D]
ciphertext = ''.join([chr(c) for c in ciphertext])
T = Twofish('I have a male fish and a female ')
flag = ''
for i in range(0, 48, 16):
flag += T.decrypt(ciphertext[i:i+16])
print flag
# qwb{TH3y_Io<e_EACh_OTh3r_FOrEUER}
References
https://www.jianshu.com/p/a2f826064e29
https://blog.csdn.net/jscese/article/details/51005447
https://blog.csdn.net/zhuzhuzhu22/article/details/80306203
https://blog.csdn.net/ldpxxx/article/details/9253369
https://stackoverflow.com/questions/23624212/how-to-convert-a-float-into-hex
https://www.52pojie.cn/thread-1105062-1-1.html
https://blog.csdn.net/jason0539/article/details/10049899
